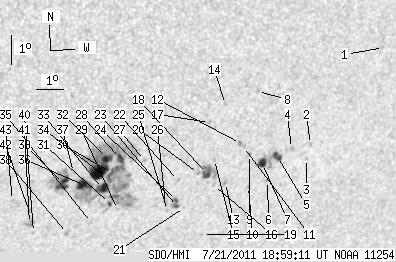

SDO HMI 2011-07-21 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.76 | 376.59 | 56.40 | 231.29 | -22.85 | 135.05 | 23.57 | 218.66 | 0.5914 | -224.4 | -200.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-21 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.41 | -18.88 | 143.86 | 32.37 | 232.36 | 0.6421 | 686.0 | 545.1 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -22.04 | 141.79 | 30.31 | 226.60 | 0.6461 | 722.0 | 613.3 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -22.52 | 141.76 | 30.27 | 226.00 | 0.6497 | 609.0 | 542.7 | |
| 0.00 | 2.18 | 0.00 | 1.40 | -22.15 | 141.10 | 29.61 | 225.84 | 0.6402 | 505.0 | 463.6 | |
| 5.53 | 23.30 | 3.55 | 14.92 | -22.40 | 140.63 | 29.14 | 225.10 | 0.6379 | 814.0 | 676.0 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -23.21 | 140.44 | 28.96 | 223.95 | 0.6433 | 592.0 | 529.9 | |
| 6.26 | -5.00 | 4.00 | -5.00 | -22.62 | 140.11 | 28.63 | 224.35 | 0.6349 | 956.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -20.15 | 139.40 | 27.92 | 226.71 | 0.6061 | 592.0 | 426.7 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -22.28 | 139.55 | 28.07 | 224.20 | 0.6267 | 925.0 | 723.5 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -23.39 | 139.76 | 28.28 | 223.10 | 0.6386 | 730.0 | 606.9 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -22.00 | 139.26 | 27.78 | 224.27 | 0.6214 | 746.0 | 691.6 | |
| 0.00 | 2.18 | 0.00 | 1.37 | -21.89 | 139.13 | 27.65 | 224.26 | 0.6191 | 916.0 | 790.3 | |
| 0.00 | 2.81 | 0.00 | 1.79 | -23.21 | 138.86 | 27.37 | 222.42 | 0.6287 | 795.0 | 565.3 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -20.54 | 138.30 | 26.82 | 225.10 | 0.5987 | 794.0 | 624.9 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -22.40 | 138.27 | 26.79 | 222.78 | 0.6157 | 799.0 | 627.4 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -23.30 | 138.43 | 26.95 | 221.88 | 0.6256 | 622.0 | 530.4 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -21.13 | 137.83 | 26.35 | 223.88 | 0.5995 | 816.0 | 694.0 | |
| 6.71 | 16.41 | 4.22 | 10.33 | -22.87 | 138.11 | 26.63 | 222.06 | 0.6187 | 933.7 | 759.9 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -25.00 | 138.41 | 26.92 | 219.93 | 0.6416 | 388.0 | 369.6 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -22.86 | 137.78 | 26.30 | 221.73 | 0.6155 | 776.0 | 681.1 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -24.02 | 137.51 | 26.03 | 220.11 | 0.6243 | 632.0 | 512.5 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -23.07 | 137.09 | 25.60 | 220.75 | 0.6113 | 665.0 | 518.4 | |
| 1.45 | 5.71 | 0.92 | 3.60 | -23.98 | 137.24 | 25.76 | 219.88 | 0.6215 | 741.9 | 774.2 | |
| 1.72 | -23.00 | 1.08 | -23.00 | -23.77 | 137.16 | 25.67 | 220.03 | 0.6187 | 823.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -24.10 | 136.90 | 25.41 | 219.37 | 0.6198 | 655.0 | 511.6 | |
| 0.00 | 2.45 | 0.00 | 1.54 | -23.86 | 136.77 | 25.29 | 219.51 | 0.6162 | 650.0 | 613.5 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -22.33 | 135.70 | 24.22 | 220.09 | 0.5914 | -623.0 | -460.5 | |
| 4.08 | 255.52 | 2.48 | 155.85 | -22.23 | 134.82 | 23.34 | 219.19 | 0.5824 | -915.5 | -360.7 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -24.00 | 135.04 | 23.56 | 217.44 | 0.6028 | -455.0 | -341.4 | |
| 8.43 | -28.00 | 5.15 | -28.00 | -22.74 | 134.62 | 23.14 | 218.38 | 0.5860 | -692.8 | 999999 | |
| 1.54 | -28.00 | 0.95 | -28.00 | -23.78 | 134.71 | 23.22 | 217.30 | 0.5976 | -598.2 | 999999 | |
| 5.62 | -28.00 | 3.41 | -28.00 | -22.22 | 134.35 | 22.87 | 218.66 | 0.5780 | -1026.8 | 999999 | |
| 9.16 | -28.00 | 5.60 | -28.00 | -23.25 | 134.36 | 22.87 | 217.49 | 0.5890 | -798.7 | 999999 | |
| 19.77 | -28.00 | 12.01 | -28.00 | -22.65 | 134.11 | 22.62 | 217.86 | 0.5805 | -1092.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -24.42 | 134.18 | 22.69 | 215.99 | 0.6000 | -505.0 | -384.8 | |
| 11.15 | -28.00 | 6.78 | -28.00 | -23.12 | 133.69 | 22.20 | 216.83 | 0.5819 | -953.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -22.66 | 133.21 | 21.73 | 216.78 | 0.5729 | -909.0 | -756.2 | |
| 0.00 | 2.54 | 0.00 | 1.56 | -24.78 | 133.37 | 21.89 | 214.66 | 0.5974 | -646.0 | -537.5 | |
| 10.34 | 30.83 | 6.25 | 18.59 | -23.03 | 132.92 | 21.44 | 216.00 | 0.5744 | -1008.0 | -626.0 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -24.70 | 132.14 | 20.65 | 213.23 | 0.5868 | -518.0 | -454.3 | |
| 0.00 | 5.44 | 0.00 | 3.31 | -24.38 | 131.94 | 20.45 | 213.32 | 0.5817 | -736.0 | -606.7 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -23.96 | 131.87 | 20.38 | 213.67 | 0.5763 | -887.0 | -737.5 | |
| 0.00 | 1.63 | 0.00 | 0.98 | -23.56 | 131.20 | 19.72 | 213.23 | 0.5664 | -681.0 | -551.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
