SDO HMI 2011-07-21 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.65 | 272.85 | 39.96 | 171.53 | 24.55 | 77.54 | -33.94 | 55.42 | 0.6185 | -220.0 | -25.6 | |
|
previous
or next observation for the same group /

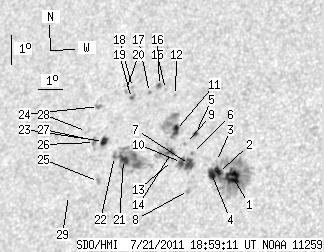

back to the solar disc SDO HMI 2011-07-21 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.33 | 111.44 | 8.76 | 68.21 | 24.04 | 79.90 | -31.58 | 54.64 | 0.5886 | -1093.3 | -434.6 | |
| 5.26 | -1.00 | 3.24 | -1.00 | 24.15 | 79.32 | -32.16 | 54.88 | 0.5960 | -880.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 24.50 | 79.14 | -32.34 | 54.49 | 0.6002 | 36.0 | -13.9 | |
| 6.53 | -1.00 | 4.03 | -1.00 | 24.10 | 79.06 | -32.42 | 55.13 | 0.5987 | -665.5 | 999999 | |
| 1.36 | 2.72 | 0.86 | 1.71 | 25.36 | 78.04 | -33.44 | 53.96 | 0.6181 | -708.1 | -660.3 | |
| 0.00 | 1.54 | 0.00 | 0.96 | 24.71 | 78.12 | -33.36 | 54.86 | 0.6132 | -753.0 | -638.1 | |
| 7.62 | 17.86 | 4.76 | 11.18 | 24.35 | 78.11 | -33.37 | 55.39 | 0.6111 | -905.3 | -618.1 | |
| 0.00 | 2.54 | 0.00 | 1.57 | 23.52 | 78.31 | -33.17 | 56.50 | 0.6038 | -675.0 | -606.2 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 25.02 | 77.74 | -33.74 | 54.65 | 0.6193 | -671.0 | -554.3 | |
| 4.71 | -7.00 | 2.96 | -7.00 | 24.40 | 77.77 | -33.71 | 55.54 | 0.6152 | -672.8 | 999999 | |
| 5.35 | 29.20 | 3.40 | 18.60 | 25.42 | 77.21 | -34.28 | 54.42 | 0.6277 | -745.8 | -17.6 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 26.56 | 76.83 | -34.66 | 53.05 | 0.6387 | 598.0 | 552.5 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 24.45 | 77.39 | -34.09 | 55.71 | 0.6198 | -564.0 | -437.0 | |
| 3.35 | 18.41 | 2.12 | 11.67 | 24.71 | 77.27 | -34.21 | 55.41 | 0.6227 | -639.4 | -72.5 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 26.73 | 76.35 | -35.13 | 53.11 | 0.6449 | 689.0 | 493.7 | |
| 1.72 | 3.17 | 1.12 | 2.06 | 26.85 | 76.05 | -35.43 | 53.13 | 0.6487 | 778.0 | 741.4 | |
| 0.00 | 1.54 | 0.00 | 1.00 | 26.61 | 75.72 | -35.76 | 53.67 | 0.6508 | 864.0 | 730.9 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 26.73 | 74.96 | -36.53 | 53.95 | 0.6597 | 703.0 | 636.5 | |
| 1.27 | 2.90 | 0.83 | 1.90 | 26.38 | 75.05 | -36.44 | 54.40 | 0.6567 | 802.4 | 728.8 | |
| 0.00 | 1.36 | 0.00 | 0.90 | 26.59 | 74.71 | -36.77 | 54.29 | 0.6615 | 791.0 | 668.5 | |
| 6.53 | 50.96 | 4.21 | 32.73 | 24.39 | 75.41 | -36.08 | 56.98 | 0.6419 | 1013.1 | 542.9 | |
| 1.18 | -21.00 | 0.76 | -21.00 | 24.47 | 75.01 | -36.48 | 57.10 | 0.6468 | 635.5 | 999999 | |
| 4.44 | 7.34 | 2.91 | 4.81 | 24.93 | 74.39 | -37.10 | 56.79 | 0.6561 | 851.1 | 480.6 | |
| 0.00 | 3.17 | 0.00 | 2.11 | 26.05 | 73.76 | -37.72 | 55.57 | 0.6687 | 837.0 | 610.4 | |
| 0.00 | 2.72 | 0.00 | 1.76 | 23.64 | 74.62 | -36.87 | 58.50 | 0.6469 | 821.0 | 607.4 | |
| 0.00 | 4.90 | 0.00 | 3.22 | 24.88 | 74.02 | -37.46 | 57.05 | 0.6598 | 690.0 | 580.0 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 24.97 | 73.78 | -37.70 | 57.06 | 0.6629 | 395.0 | 389.8 | |
| 0.00 | 2.36 | 0.00 | 1.56 | 25.22 | 73.56 | -37.92 | 56.83 | 0.6666 | 501.0 | 455.2 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 23.13 | 73.53 | -37.95 | 59.78 | 0.6568 | 581.0 | 519.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
