SDO HMI 2011-07-21 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.67 | 360.43 | 57.82 | 222.31 | -22.85 | 135.08 | 24.15 | 219.32 | 0.5965 | -245.8 | -200.3 | |
|
previous
or next observation for the same group /

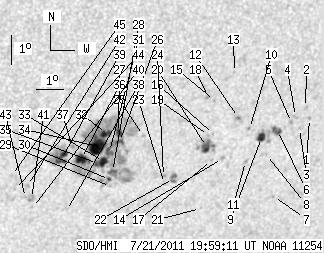

back to the solar disc SDO HMI 2011-07-21 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.94 | -22.03 | 141.81 | 30.89 | 227.13 | 0.6516 | 738.0 | 593.8 | |
| 0.00 | 1.63 | 0.00 | 1.06 | -21.64 | 141.57 | 30.64 | 227.38 | 0.6460 | 558.0 | 520.1 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -22.35 | 141.51 | 30.58 | 226.46 | 0.6513 | 552.0 | 451.2 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -21.93 | 141.26 | 30.33 | 226.75 | 0.6454 | 664.0 | 557.7 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -22.13 | 141.15 | 30.22 | 226.41 | 0.6460 | 773.0 | 584.5 | |
| 6.17 | 6.80 | 3.98 | 4.39 | -22.38 | 140.68 | 29.75 | 225.67 | 0.6436 | 753.9 | 586.3 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -24.68 | 141.10 | 30.18 | 223.38 | 0.6673 | 528.0 | 411.3 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -23.20 | 140.45 | 29.53 | 224.50 | 0.6485 | 619.0 | 517.0 | |
| 5.89 | 13.06 | 3.79 | 8.41 | -22.60 | 140.12 | 29.19 | 224.90 | 0.6402 | 954.2 | 711.0 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -22.27 | 139.59 | 28.67 | 224.80 | 0.6323 | 833.0 | 682.2 | |
| 0.00 | 1.63 | 0.00 | 1.05 | -23.41 | 139.71 | 28.78 | 223.56 | 0.6434 | 658.0 | 521.2 | |
| 1.09 | 2.81 | 0.69 | 1.78 | -21.87 | 139.09 | 28.17 | 224.79 | 0.6240 | 797.6 | 745.5 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -20.33 | 138.63 | 27.70 | 226.25 | 0.6056 | 580.0 | 519.3 | |
| 0.00 | 2.09 | 0.00 | 1.33 | -23.26 | 138.80 | 27.88 | 222.85 | 0.6338 | 757.0 | 571.7 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -21.25 | 138.08 | 27.15 | 224.54 | 0.6085 | 778.0 | 577.9 | |
| 0.00 | 0.63 | 0.00 | 0.40 | -22.42 | 138.28 | 27.35 | 223.33 | 0.6212 | 776.0 | 640.9 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -23.31 | 138.40 | 27.48 | 222.40 | 0.6307 | 632.0 | 553.5 | |
| 0.00 | 2.09 | 0.00 | 1.29 | -21.14 | 137.83 | 26.91 | 224.43 | 0.6051 | 901.0 | 723.0 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -22.44 | 138.10 | 27.17 | 223.12 | 0.6198 | 829.0 | 684.9 | |
| 8.52 | 18.22 | 5.39 | 11.52 | -22.82 | 138.11 | 27.18 | 222.68 | 0.6233 | 922.3 | 670.8 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -24.98 | 138.38 | 27.45 | 220.48 | 0.6460 | 483.0 | 416.0 | |
| 0.00 | 5.08 | 0.00 | 3.21 | -23.88 | 137.11 | 26.19 | 220.43 | 0.6244 | 933.0 | 794.4 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -24.05 | 136.81 | 25.89 | 219.93 | 0.6234 | 560.0 | 508.2 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -23.80 | 136.72 | 25.80 | 220.12 | 0.6202 | 568.0 | 490.5 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -22.35 | 135.70 | 24.77 | 220.69 | 0.5966 | -518.0 | -403.6 | |
| 3.08 | 247.53 | 1.89 | 151.61 | -22.52 | 134.86 | 23.93 | 219.54 | 0.5908 | -598.4 | -355.0 | |
| 4.90 | -26.00 | 2.99 | -26.00 | -22.21 | 134.77 | 23.84 | 219.80 | 0.5868 | -907.3 | 999999 | |
| 3.17 | -26.00 | 1.96 | -26.00 | -23.55 | 134.80 | 23.87 | 218.29 | 0.6009 | -588.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -24.07 | 134.83 | 23.90 | 217.75 | 0.6065 | -463.0 | -313.7 | |
| 1.36 | -26.00 | 0.84 | -26.00 | -23.83 | 134.75 | 23.82 | 217.92 | 0.6033 | -554.2 | 999999 | |
| 5.35 | -26.00 | 3.28 | -26.00 | -22.85 | 134.56 | 23.63 | 218.81 | 0.5916 | -631.9 | 999999 | |
| 5.71 | -26.00 | 3.48 | -26.00 | -22.23 | 134.34 | 23.41 | 219.28 | 0.5831 | -997.4 | 999999 | |
| 5.53 | -26.00 | 3.40 | -26.00 | -23.19 | 134.41 | 23.48 | 218.25 | 0.5937 | -814.0 | 999999 | |
| 21.49 | -26.00 | 13.10 | -26.00 | -22.67 | 134.09 | 23.17 | 218.49 | 0.5855 | -1127.4 | 999999 | |
| 3.45 | -26.00 | 2.12 | -26.00 | -23.25 | 134.20 | 23.27 | 217.94 | 0.5926 | -755.8 | 999999 | |
| 7.71 | -26.00 | 4.70 | -26.00 | -23.06 | 133.59 | 22.66 | 217.44 | 0.5853 | -1022.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -22.63 | 133.19 | 22.27 | 217.45 | 0.5773 | -912.0 | -782.4 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -24.86 | 133.38 | 22.45 | 215.24 | 0.6029 | -482.0 | -473.5 | |
| 10.25 | 28.92 | 6.21 | 17.51 | -23.04 | 132.87 | 21.94 | 216.61 | 0.5788 | -1001.5 | -637.3 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -24.71 | 132.12 | 21.20 | 213.89 | 0.5913 | -547.0 | -421.8 | |
| 0.00 | 4.35 | 0.00 | 2.66 | -24.39 | 132.03 | 21.10 | 214.11 | 0.5870 | -612.0 | -589.0 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -23.93 | 131.81 | 20.88 | 214.32 | 0.5800 | -776.0 | -624.7 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -24.35 | 131.81 | 20.88 | 213.88 | 0.5848 | -661.0 | -551.8 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -24.06 | 131.37 | 20.44 | 213.63 | 0.5779 | -620.0 | -549.8 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -23.57 | 131.18 | 20.25 | 213.91 | 0.5708 | -689.0 | -602.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
