SDO HMI 2011-07-21 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.18 | 280.19 | 41.29 | 175.17 | 24.57 | 77.48 | -33.45 | 55.09 | 0.6130 | -199.8 | -35.3 | |
|
previous
or next observation for the same group /

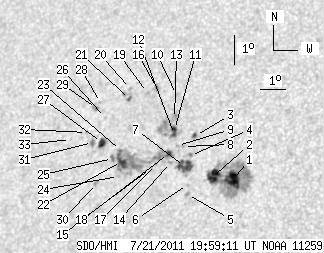

back to the solar disc SDO HMI 2011-07-21 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.87 | 109.62 | 9.64 | 66.70 | 24.01 | 79.95 | -30.98 | 54.26 | 0.5815 | -1125.5 | -443.0 | |
| 11.70 | -1.00 | 7.17 | -1.00 | 24.07 | 79.15 | -31.78 | 54.74 | 0.5911 | -778.6 | 999999 | |
| 1.27 | 2.36 | 0.79 | 1.47 | 25.36 | 78.10 | -32.83 | 53.55 | 0.6113 | -629.8 | -724.4 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 24.71 | 78.09 | -32.84 | 54.51 | 0.6071 | -732.0 | -615.9 | |
| 0.00 | 2.18 | 0.00 | 1.34 | 23.46 | 78.34 | -32.59 | 56.23 | 0.5966 | -684.0 | -585.2 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 23.78 | 78.25 | -32.68 | 55.81 | 0.5996 | -782.0 | -659.0 | |
| 12.69 | 18.22 | 7.89 | 11.33 | 24.35 | 77.96 | -32.97 | 55.14 | 0.6064 | -828.7 | -624.7 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 24.99 | 77.73 | -33.20 | 54.35 | 0.6130 | -646.0 | -602.4 | |
| 0.00 | 1.63 | 0.00 | 1.02 | 25.01 | 77.48 | -33.45 | 54.48 | 0.6159 | -659.0 | -556.8 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 26.66 | 76.90 | -34.02 | 52.51 | 0.6325 | 682.0 | 539.5 | |
| 2.27 | 23.76 | 1.43 | 15.04 | 25.52 | 77.20 | -33.73 | 53.93 | 0.6222 | -771.6 | -97.6 | |
| 1.90 | -11.00 | 1.20 | -11.00 | 25.36 | 77.25 | -33.68 | 54.13 | 0.6206 | -738.5 | 999999 | |
| 0.00 | 4.99 | 0.00 | 3.16 | 25.88 | 77.08 | -33.85 | 53.50 | 0.6257 | 114.0 | -17.3 | |
| 0.00 | 1.63 | 0.00 | 1.02 | 24.45 | 77.37 | -33.56 | 55.38 | 0.6137 | -617.0 | -503.7 | |
| 3.08 | 71.45 | 1.94 | 45.41 | 24.74 | 77.20 | -33.73 | 55.07 | 0.6174 | -616.0 | 378.4 | |
| 1.36 | 3.17 | 0.88 | 2.05 | 26.82 | 76.06 | -34.87 | 52.83 | 0.6425 | 795.8 | 698.1 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 24.36 | 76.83 | -34.10 | 55.85 | 0.6193 | -410.0 | -388.8 | |
| 0.00 | 1.72 | 0.00 | 1.09 | 24.22 | 76.63 | -34.30 | 56.18 | 0.6208 | -389.0 | -362.8 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 26.67 | 75.70 | -35.23 | 53.27 | 0.6455 | 884.0 | 723.7 | |
| 0.00 | 1.36 | 0.00 | 0.89 | 26.77 | 74.95 | -35.98 | 53.59 | 0.6541 | 729.0 | 604.8 | |
| 1.54 | 5.53 | 1.00 | 3.61 | 26.41 | 75.03 | -35.89 | 54.04 | 0.6510 | 792.2 | 678.9 | |
| 8.43 | -15.00 | 5.40 | -15.00 | 24.39 | 75.39 | -35.53 | 56.68 | 0.6357 | 948.3 | 999999 | |
| 0.45 | -15.00 | 0.29 | -15.00 | 24.74 | 75.24 | -35.69 | 56.26 | 0.6394 | 756.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 23.91 | 75.43 | -35.50 | 57.36 | 0.6327 | 623.0 | 532.5 | |
| 0.00 | 2.72 | 0.00 | 1.75 | 24.47 | 75.00 | -35.93 | 56.79 | 0.6406 | 754.0 | 610.9 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 25.78 | 74.25 | -36.68 | 55.37 | 0.6559 | 519.0 | 402.2 | |
| 5.17 | 6.71 | 3.36 | 4.36 | 24.96 | 74.37 | -36.56 | 56.45 | 0.6502 | 848.8 | 544.0 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 26.25 | 73.86 | -37.06 | 54.93 | 0.6627 | 617.0 | 469.0 | |
| 0.45 | 3.54 | 0.30 | 2.34 | 26.05 | 73.77 | -37.16 | 55.27 | 0.6626 | 778.8 | 506.6 | |
| 0.00 | 2.54 | 0.00 | 1.63 | 23.64 | 74.61 | -36.32 | 58.21 | 0.6407 | 720.0 | 637.6 | |
| 0.00 | 3.63 | 0.00 | 2.37 | 24.94 | 74.00 | -36.93 | 56.68 | 0.6542 | 677.0 | 597.2 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 25.25 | 73.63 | -37.29 | 56.44 | 0.6598 | 641.0 | 477.1 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 25.00 | 73.05 | -37.88 | 57.12 | 0.6649 | 510.0 | 391.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
