SDO HMI 2011-07-21 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.64 | 349.64 | 41.41 | 217.57 | -22.82 | 134.97 | 25.15 | 220.45 | 0.6053 | -182.3 | -193.1 | |
|
previous
or next observation for the same group /

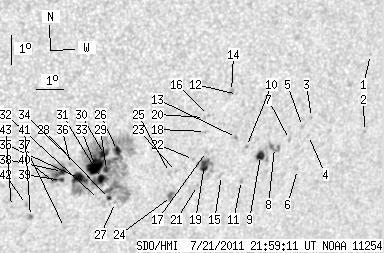

back to the solar disc SDO HMI 2011-07-21 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.42 | -19.37 | 143.62 | 33.80 | 232.85 | 0.6607 | 585.0 | 482.6 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -21.98 | 144.05 | 34.23 | 229.94 | 0.6839 | 627.0 | 525.6 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -21.39 | 141.82 | 32.00 | 228.85 | 0.6575 | 643.0 | 496.6 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -22.00 | 141.86 | 32.04 | 228.14 | 0.6627 | 606.0 | 516.9 | |
| 0.00 | 1.45 | 0.00 | 0.95 | -21.68 | 141.54 | 31.72 | 228.26 | 0.6571 | 660.0 | 538.8 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -23.16 | 141.73 | 31.91 | 226.65 | 0.6706 | 412.0 | 275.0 | |
| 0.00 | 1.72 | 0.00 | 1.13 | -22.11 | 141.15 | 31.33 | 227.41 | 0.6566 | 666.0 | 523.1 | |
| 0.00 | 5.98 | 0.00 | 3.91 | -22.35 | 140.63 | 30.81 | 226.66 | 0.6537 | 625.0 | 759.2 | |
| 5.53 | 13.06 | 3.60 | 8.51 | -22.61 | 140.16 | 30.34 | 225.93 | 0.6512 | 949.2 | 656.3 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -22.27 | 139.54 | 29.72 | 225.78 | 0.6425 | 721.0 | 691.7 | |
| 0.00 | 1.81 | 0.00 | 1.18 | -23.44 | 139.63 | 29.81 | 224.47 | 0.6534 | 611.0 | 503.0 | |
| 0.00 | 0.63 | 0.00 | 0.40 | -20.48 | 138.81 | 28.99 | 227.30 | 0.6199 | 451.0 | 368.9 | |
| 0.00 | 1.81 | 0.00 | 1.16 | -21.94 | 139.09 | 29.27 | 225.75 | 0.6353 | 886.0 | 765.0 | |
| 0.00 | 3.26 | 0.00 | 2.05 | -20.36 | 138.56 | 28.74 | 227.21 | 0.6165 | 709.0 | 606.9 | |
| 0.00 | 2.45 | 0.00 | 1.58 | -23.23 | 138.82 | 29.00 | 223.96 | 0.6441 | 678.0 | 567.4 | |
| 0.00 | 0.63 | 0.00 | 0.40 | -21.14 | 137.87 | 28.05 | 225.56 | 0.6164 | 728.0 | 647.6 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -22.38 | 138.06 | 28.24 | 224.25 | 0.6293 | 764.0 | 600.6 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -21.69 | 137.87 | 28.05 | 224.90 | 0.6213 | 688.0 | 607.2 | |
| 7.62 | 15.87 | 4.87 | 10.14 | -22.82 | 138.08 | 28.26 | 223.74 | 0.6335 | 942.8 | 650.2 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -21.21 | 137.73 | 27.91 | 225.35 | 0.6157 | 667.0 | 537.7 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -23.54 | 137.98 | 28.17 | 222.80 | 0.6391 | 703.0 | 533.3 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -22.63 | 137.63 | 27.81 | 223.52 | 0.6276 | 773.0 | 638.7 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -23.02 | 137.08 | 27.26 | 222.51 | 0.6260 | 694.0 | 522.8 | |
| 0.00 | 5.08 | 0.00 | 3.25 | -23.88 | 137.09 | 27.27 | 221.52 | 0.6342 | 911.0 | 780.3 | |
| 0.00 | 1.81 | 0.00 | 1.15 | -23.04 | 136.82 | 27.00 | 222.23 | 0.6239 | 522.0 | 439.7 | |
| 4.08 | 245.37 | 2.51 | 151.58 | -22.21 | 134.74 | 24.92 | 221.01 | 0.5967 | -906.6 | -356.5 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -24.01 | 135.03 | 25.21 | 219.25 | 0.6172 | -424.0 | -360.6 | |
| 1.63 | -26.00 | 1.02 | -26.00 | -23.86 | 134.78 | 24.96 | 219.14 | 0.6136 | -554.6 | 999999 | |
| 3.26 | -26.00 | 2.02 | -26.00 | -22.85 | 134.46 | 24.65 | 219.95 | 0.6006 | -669.6 | 999999 | |
| 3.99 | -26.00 | 2.45 | -26.00 | -22.33 | 134.29 | 24.47 | 220.37 | 0.5938 | -988.7 | 999999 | |
| 4.35 | -26.00 | 2.70 | -26.00 | -23.15 | 134.34 | 24.52 | 219.47 | 0.6026 | -755.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -23.88 | 134.38 | 24.56 | 218.68 | 0.6103 | -627.0 | -550.3 | |
| 18.23 | -26.00 | 11.22 | -26.00 | -22.73 | 134.04 | 24.22 | 219.62 | 0.5956 | -1112.4 | 999999 | |
| 1.09 | -26.00 | 0.67 | -26.00 | -23.28 | 134.11 | 24.29 | 219.06 | 0.6019 | -722.0 | 999999 | |
| 11.61 | -26.00 | 7.14 | -26.00 | -23.12 | 133.54 | 23.72 | 218.59 | 0.5952 | -921.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -22.62 | 133.12 | 23.30 | 218.68 | 0.5864 | -919.0 | -698.2 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -24.81 | 133.32 | 23.50 | 216.48 | 0.6111 | -596.0 | -431.6 | |
| 3.35 | 26.93 | 2.05 | 16.42 | -22.86 | 132.87 | 23.06 | 218.13 | 0.5866 | -1101.0 | -700.7 | |
| 1.54 | -38.00 | 0.94 | -38.00 | -23.17 | 132.90 | 23.08 | 217.80 | 0.5901 | -821.0 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -23.30 | 132.78 | 22.96 | 217.51 | 0.5905 | -472.0 | -476.2 | |
| 0.36 | 2.90 | 0.22 | 1.79 | -24.38 | 132.00 | 22.18 | 215.41 | 0.5957 | -756.0 | -660.3 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -23.96 | 131.78 | 21.96 | 215.60 | 0.5892 | -810.0 | -654.8 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -24.01 | 131.25 | 21.43 | 214.90 | 0.5855 | -541.0 | -469.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
