SDO HMI 2011-07-21 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.94 | 250.47 | 35.39 | 153.63 | 24.45 | 77.38 | -31.88 | 54.20 | 0.5944 | -252.9 | -60.7 | |
|
previous
or next observation for the same group /

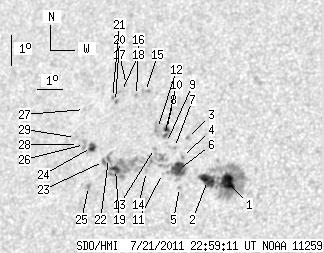

back to the solar disc SDO HMI 2011-07-21 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.42 | 102.02 | 8.02 | 61.05 | 24.04 | 79.97 | -29.29 | 52.95 | 0.5620 | -1140.8 | -484.6 | |
| 14.15 | -1.00 | 8.52 | -1.00 | 24.04 | 79.20 | -30.06 | 53.55 | 0.5709 | -803.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 25.39 | 78.05 | -31.21 | 52.38 | 0.5932 | -886.0 | -741.6 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 24.77 | 78.03 | -31.23 | 53.32 | 0.5892 | -764.0 | -637.2 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 23.77 | 78.19 | -31.08 | 54.72 | 0.5808 | -784.0 | -614.3 | |
| 13.78 | 25.93 | 8.42 | 15.85 | 24.34 | 77.99 | -31.27 | 53.99 | 0.5869 | -866.8 | -561.0 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 25.04 | 77.64 | -31.63 | 53.20 | 0.5955 | -760.0 | -563.5 | |
| 2.63 | 6.35 | 1.63 | 3.94 | 25.61 | 77.15 | -32.11 | 52.71 | 0.6047 | -733.8 | -581.8 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 25.19 | 77.28 | -31.99 | 53.24 | 0.6006 | -588.0 | -468.8 | |
| 1.18 | -8.00 | 0.73 | -8.00 | 25.42 | 77.13 | -32.13 | 53.01 | 0.6037 | -738.2 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 24.19 | 77.41 | -31.86 | 54.64 | 0.5925 | -463.0 | -347.9 | |
| 0.00 | 6.89 | 0.00 | 4.30 | 25.63 | 76.79 | -32.48 | 52.94 | 0.6089 | 110.0 | 53.1 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 24.98 | 76.86 | -32.40 | 53.84 | 0.6038 | 204.0 | 172.9 | |
| 0.00 | 1.63 | 0.00 | 1.01 | 24.23 | 76.77 | -32.50 | 55.03 | 0.6001 | -420.0 | -337.8 | |
| 0.00 | 3.63 | 0.00 | 2.30 | 26.81 | 75.92 | -33.34 | 51.85 | 0.6260 | 893.0 | 735.1 | |
| 0.00 | 1.45 | 0.00 | 0.92 | 26.66 | 75.60 | -33.66 | 52.28 | 0.6285 | 834.0 | 683.3 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 27.00 | 75.08 | -34.19 | 52.15 | 0.6363 | 482.0 | 392.5 | |
| 0.00 | 2.72 | 0.00 | 1.74 | 26.77 | 74.95 | -34.32 | 52.57 | 0.6361 | 574.0 | 445.2 | |
| 4.72 | 71.73 | 2.95 | 44.74 | 24.23 | 75.52 | -33.74 | 55.83 | 0.6144 | 1086.4 | 325.9 | |
| 0.36 | 1.54 | 0.23 | 0.99 | 26.43 | 74.82 | -34.45 | 53.12 | 0.6355 | 956.8 | 840.8 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 26.55 | 74.65 | -34.61 | 53.06 | 0.6380 | 858.0 | 750.9 | |
| 1.63 | -19.00 | 1.03 | -19.00 | 24.57 | 75.14 | -34.13 | 55.58 | 0.6208 | 834.2 | 999999 | |
| 1.54 | -19.00 | 0.97 | -19.00 | 24.47 | 74.97 | -34.30 | 55.84 | 0.6221 | 688.7 | 999999 | |
| 4.53 | 5.89 | 2.89 | 3.76 | 24.90 | 74.34 | -34.92 | 55.60 | 0.6316 | 892.7 | 567.8 | |
| 0.00 | 2.72 | 0.00 | 1.72 | 23.64 | 74.61 | -34.65 | 57.27 | 0.6214 | 771.0 | 656.2 | |
| 0.00 | 3.99 | 0.00 | 2.55 | 24.98 | 74.03 | -35.24 | 55.68 | 0.6356 | 649.0 | 564.5 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 26.11 | 73.64 | -35.63 | 54.31 | 0.6463 | 609.0 | 488.3 | |
| 0.00 | 0.73 | 0.00 | 0.47 | 24.97 | 73.78 | -35.48 | 55.84 | 0.6382 | 601.0 | 515.1 | |
| 0.00 | 1.90 | 0.00 | 1.23 | 25.19 | 73.58 | -35.68 | 55.64 | 0.6416 | 609.0 | 480.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
