SDO HMI 2011-07-21 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.38 | 327.42 | 44.16 | 205.47 | -22.85 | 134.84 | 26.12 | 221.45 | 0.6145 | -197.3 | -238.8 | |
|
previous
or next observation for the same group /

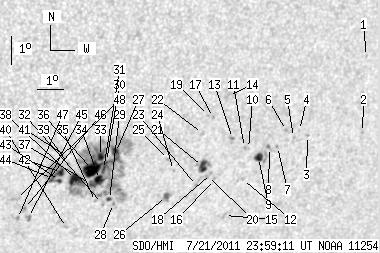

back to the solar disc SDO HMI 2011-07-21 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.61 | -19.41 | 143.58 | 34.87 | 233.59 | 0.6723 | 540.0 | 434.6 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -21.99 | 144.11 | 35.40 | 230.80 | 0.6954 | 416.0 | 329.1 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -21.98 | 141.92 | 33.20 | 229.11 | 0.6740 | 661.0 | 555.4 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -21.79 | 141.56 | 32.84 | 229.05 | 0.6690 | 693.0 | 543.4 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -22.02 | 141.38 | 32.67 | 228.62 | 0.6691 | 466.0 | 501.9 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -21.77 | 141.04 | 32.33 | 228.65 | 0.6638 | 739.0 | 623.5 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -22.30 | 140.83 | 32.11 | 227.83 | 0.6659 | 738.0 | 627.8 | |
| 0.00 | 2.63 | 0.00 | 1.74 | -22.32 | 140.52 | 31.81 | 227.55 | 0.6631 | 803.0 | 756.0 | |
| 4.99 | 10.88 | 3.29 | 7.19 | -22.65 | 140.18 | 31.47 | 226.86 | 0.6624 | 895.3 | 581.0 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -22.32 | 139.71 | 31.00 | 226.85 | 0.6552 | 625.0 | 609.3 | |
| 0.00 | 1.36 | 0.00 | 0.89 | -22.28 | 139.55 | 30.83 | 226.76 | 0.6533 | 810.0 | 706.0 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -23.38 | 139.75 | 31.04 | 225.62 | 0.6644 | 694.0 | 516.3 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -21.94 | 139.01 | 30.29 | 226.68 | 0.6454 | 850.0 | 778.6 | |
| 0.00 | 3.45 | 0.00 | 2.19 | -20.47 | 138.52 | 29.81 | 228.07 | 0.6283 | 714.0 | 491.3 | |
| 0.00 | 2.09 | 0.00 | 1.39 | -24.61 | 139.38 | 30.66 | 223.87 | 0.6713 | 508.0 | 406.6 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -23.33 | 138.66 | 29.94 | 224.70 | 0.6538 | 564.0 | 468.2 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -21.19 | 138.12 | 29.40 | 226.79 | 0.6303 | 809.0 | 677.7 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -23.12 | 138.49 | 29.77 | 224.80 | 0.6504 | 649.0 | 542.5 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -21.11 | 137.91 | 29.20 | 226.69 | 0.6276 | 776.0 | 749.8 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -23.21 | 138.36 | 29.65 | 224.57 | 0.6500 | 799.0 | 649.0 | |
| 7.07 | 12.70 | 4.57 | 8.21 | -22.86 | 138.08 | 29.37 | 224.73 | 0.6443 | 920.1 | 695.0 | |
| 0.00 | 1.81 | 0.00 | 1.16 | -21.72 | 137.82 | 29.11 | 225.86 | 0.6320 | 589.0 | 516.9 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -23.51 | 138.01 | 29.30 | 223.90 | 0.6494 | 773.0 | 688.2 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -22.95 | 137.01 | 28.29 | 223.61 | 0.6351 | 577.0 | 572.0 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -22.56 | 136.73 | 28.02 | 223.80 | 0.6290 | 297.0 | 226.2 | |
| 2.45 | 6.53 | 1.58 | 4.21 | -23.84 | 136.95 | 28.24 | 222.51 | 0.6427 | 826.7 | 649.5 | |
| 4.08 | 190.99 | 2.54 | 119.03 | -22.24 | 134.70 | 25.99 | 222.12 | 0.6070 | -875.8 | -381.7 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -24.00 | 135.00 | 26.29 | 220.37 | 0.6268 | -468.0 | -393.5 | |
| 1.63 | 2.27 | 1.03 | 1.43 | -23.86 | 134.82 | 26.10 | 220.35 | 0.6237 | -504.8 | -452.6 | |
| 0.63 | -27.00 | 0.40 | -27.00 | -22.53 | 134.43 | 25.72 | 221.48 | 0.6074 | -682.7 | 999999 | |
| 2.18 | -27.00 | 1.36 | -27.00 | -22.80 | 134.38 | 25.66 | 221.10 | 0.6095 | -694.7 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.09 | -23.99 | 134.59 | 25.87 | 219.96 | 0.6230 | -402.0 | -418.1 | |
| 3.45 | -27.00 | 2.14 | -27.00 | -22.35 | 134.18 | 25.46 | 221.42 | 0.6032 | -1046.8 | 999999 | |
| 5.99 | -27.00 | 3.74 | -27.00 | -23.15 | 134.30 | 25.58 | 220.62 | 0.6122 | -680.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -23.91 | 134.31 | 25.60 | 219.76 | 0.6197 | -470.0 | -358.2 | |
| 19.23 | -27.00 | 11.94 | -27.00 | -22.79 | 133.97 | 25.26 | 220.68 | 0.6057 | -1083.8 | 999999 | |
| 1.81 | -27.00 | 1.13 | -27.00 | -23.31 | 134.04 | 25.32 | 220.15 | 0.6114 | -635.6 | 999999 | |
| 10.43 | 28.29 | 6.47 | 17.60 | -23.11 | 133.41 | 24.70 | 219.70 | 0.6039 | -913.3 | -311.1 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -22.55 | 133.05 | 24.33 | 219.94 | 0.5949 | -849.0 | -740.4 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -24.78 | 133.42 | 24.71 | 217.84 | 0.6209 | -600.0 | -414.4 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -22.30 | 132.93 | 24.22 | 220.10 | 0.5914 | -585.0 | -498.2 | |
| 3.54 | 29.29 | 2.18 | 18.01 | -22.85 | 132.85 | 24.14 | 219.37 | 0.5963 | -1021.8 | -679.3 | |
| 1.90 | -42.00 | 1.18 | -42.00 | -23.12 | 132.83 | 24.12 | 219.03 | 0.5989 | -755.7 | 999999 | |
| 1.00 | -42.00 | 0.61 | -42.00 | -23.04 | 132.56 | 23.85 | 218.82 | 0.5957 | -896.9 | 999999 | |
| 0.00 | 3.63 | 0.00 | 2.25 | -24.37 | 131.95 | 23.23 | 216.64 | 0.6043 | -842.0 | -625.3 | |
| 0.00 | 2.00 | 0.00 | 1.23 | -24.05 | 131.74 | 23.03 | 216.75 | 0.5992 | -888.0 | -710.6 | |
| 0.00 | 1.72 | 0.00 | 1.07 | -24.39 | 131.55 | 22.84 | 216.16 | 0.6013 | -706.0 | -569.8 | |
| 0.00 | 2.99 | 0.00 | 1.84 | -23.69 | 131.38 | 22.67 | 216.72 | 0.5924 | -498.0 | -586.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
