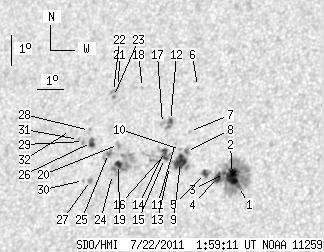

SDO HMI 2011-07-22 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.70 | 215.47 | 32.25 | 129.72 | 24.40 | 77.79 | -29.82 | 52.75 | 0.5704 | -262.8 | -93.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-22 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.09 | 89.89 | 0.64 | 52.90 | 23.72 | 80.32 | -27.29 | 51.79 | 0.5364 | -1036.7 | -487.0 | |
| 13.70 | -1.00 | 8.06 | -1.00 | 24.03 | 80.02 | -27.59 | 51.56 | 0.5422 | -1141.7 | 999999 | |
| 0.27 | -1.00 | 0.16 | -1.00 | 24.11 | 79.70 | -27.91 | 51.70 | 0.5465 | -846.7 | 999999 | |
| 5.53 | -1.00 | 3.27 | -1.00 | 23.97 | 79.47 | -28.15 | 52.12 | 0.5482 | -803.8 | 999999 | |
| 2.90 | 6.08 | 1.73 | 3.61 | 24.08 | 78.98 | -28.63 | 52.35 | 0.5545 | -759.6 | -712.5 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 26.89 | 77.93 | -29.69 | 49.02 | 0.5873 | -480.0 | -475.9 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 25.41 | 78.03 | -29.59 | 51.10 | 0.5751 | -765.0 | -616.6 | |
| 0.63 | 21.23 | 0.38 | 12.76 | 24.76 | 78.08 | -29.53 | 52.04 | 0.5698 | -859.9 | -676.8 | |
| 11.70 | -8.00 | 7.04 | -8.00 | 24.40 | 77.95 | -29.67 | 52.71 | 0.5687 | -899.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 24.82 | 77.84 | -29.78 | 52.15 | 0.5729 | -547.0 | -498.0 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 25.04 | 77.59 | -30.03 | 52.02 | 0.5773 | -839.0 | -557.5 | |
| 2.27 | 6.08 | 1.38 | 3.71 | 25.74 | 77.19 | -30.42 | 51.28 | 0.5867 | -731.0 | -676.5 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 24.25 | 77.56 | -30.05 | 53.23 | 0.5721 | -480.0 | -410.2 | |
| 2.90 | 20.59 | 1.76 | 12.50 | 24.73 | 77.24 | -30.37 | 52.76 | 0.5791 | -568.0 | -238.1 | |
| 2.45 | -14.00 | 1.48 | -14.00 | 24.50 | 77.30 | -30.31 | 53.05 | 0.5768 | -431.0 | 999999 | |
| 0.73 | -14.00 | 0.44 | -14.00 | 24.60 | 77.24 | -30.38 | 52.96 | 0.5782 | 187.2 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.33 | 25.63 | 76.91 | -30.70 | 51.66 | 0.5891 | -9.0 | -84.8 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 26.77 | 75.77 | -31.84 | 50.87 | 0.6094 | 778.0 | 632.0 | |
| 3.45 | 30.84 | 2.12 | 18.94 | 24.23 | 75.57 | -32.04 | 54.72 | 0.5948 | 1084.3 | 640.7 | |
| 0.00 | 2.81 | 0.00 | 1.74 | 24.88 | 75.39 | -32.22 | 53.89 | 0.6010 | 815.0 | 709.5 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 26.76 | 74.81 | -32.81 | 51.58 | 0.6197 | 725.0 | 604.3 | |
| 0.00 | 3.27 | 0.00 | 2.06 | 26.58 | 74.66 | -32.95 | 51.92 | 0.6202 | 676.0 | 696.2 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 26.42 | 74.71 | -32.90 | 52.12 | 0.6185 | 984.0 | 853.6 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 23.90 | 75.43 | -32.18 | 55.32 | 0.5943 | 688.0 | 587.0 | |
| 2.00 | 7.44 | 1.24 | 4.61 | 24.57 | 75.08 | -32.53 | 54.56 | 0.6025 | 828.4 | 676.0 | |
| 4.08 | 4.99 | 2.55 | 3.12 | 24.89 | 74.30 | -33.31 | 54.60 | 0.6133 | 877.3 | 605.2 | |
| 0.00 | 2.72 | 0.00 | 1.69 | 23.67 | 74.62 | -32.99 | 56.21 | 0.6022 | 787.0 | 688.6 | |
| 0.00 | 2.27 | 0.00 | 1.43 | 25.28 | 74.10 | -33.51 | 54.18 | 0.6179 | 431.0 | 357.6 | |
| 0.00 | 2.36 | 0.00 | 1.48 | 24.91 | 73.98 | -33.64 | 54.79 | 0.6171 | 656.0 | 574.5 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 23.66 | 74.35 | -33.26 | 56.40 | 0.6053 | 567.0 | 492.8 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 24.97 | 73.76 | -33.86 | 54.85 | 0.6199 | 612.0 | 483.9 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 25.24 | 73.34 | -34.27 | 54.72 | 0.6262 | 528.0 | 475.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
