SDO HMI 2011-07-22 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.64 | 218.45 | 28.39 | 130.86 | 24.37 | 77.79 | -29.27 | 52.38 | 0.5638 | -249.2 | -113.6 | |
|
previous
or next observation for the same group /

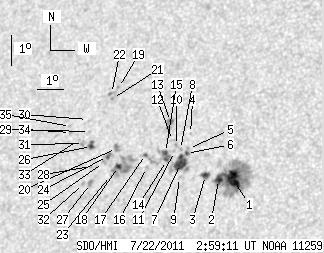

back to the solar disc SDO HMI 2011-07-22 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.34 | 86.18 | 7.81 | 50.47 | 23.99 | 80.05 | -27.02 | 51.11 | 0.5353 | -1165.3 | -526.8 | |
| 5.08 | -1.00 | 2.99 | -1.00 | 23.97 | 79.49 | -27.58 | 51.64 | 0.5415 | -780.1 | 999999 | |
| 3.45 | 5.44 | 2.04 | 3.22 | 24.08 | 78.97 | -28.09 | 51.92 | 0.5483 | -790.1 | -676.4 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 25.41 | 78.06 | -29.00 | 50.64 | 0.5686 | -789.0 | -636.5 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 24.92 | 78.11 | -28.95 | 51.33 | 0.5644 | -11.0 | -169.4 | |
| 1.45 | 49.08 | 0.87 | 29.48 | 24.76 | 78.08 | -28.99 | 51.61 | 0.5635 | -733.1 | -427.0 | |
| 12.34 | -6.00 | 7.38 | -6.00 | 24.43 | 77.93 | -29.13 | 52.24 | 0.5628 | -901.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 24.88 | 77.82 | -29.25 | 51.65 | 0.5674 | -616.0 | -498.3 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 23.98 | 78.01 | -29.06 | 52.88 | 0.5586 | -580.0 | -431.5 | |
| 0.00 | 1.72 | 0.00 | 1.04 | 25.00 | 77.63 | -29.43 | 51.61 | 0.5704 | -528.0 | -520.3 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 24.80 | 77.60 | -29.46 | 51.93 | 0.5692 | -557.0 | -496.9 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 25.16 | 77.43 | -29.63 | 51.53 | 0.5737 | -505.0 | -498.1 | |
| 0.91 | 5.72 | 0.55 | 3.47 | 25.77 | 77.19 | -29.88 | 50.82 | 0.5809 | -783.1 | -642.5 | |
| 1.81 | -6.00 | 1.09 | -6.00 | 24.50 | 77.37 | -29.69 | 52.58 | 0.5697 | -565.8 | 999999 | |
| 2.18 | -6.00 | 1.31 | -6.00 | 24.76 | 77.27 | -29.80 | 52.27 | 0.5727 | -617.5 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.04 | 24.25 | 76.67 | -30.40 | 53.52 | 0.5760 | -485.0 | -348.2 | |
| 1.09 | -6.00 | 0.66 | -6.00 | 24.66 | 76.52 | -30.55 | 53.00 | 0.5805 | -352.9 | 999999 | |
| 2.54 | 27.94 | 1.55 | 17.06 | 24.23 | 75.58 | -31.48 | 54.34 | 0.5883 | 1101.6 | 672.7 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 26.79 | 74.82 | -32.25 | 51.14 | 0.6139 | 612.0 | 601.3 | |
| 0.00 | 3.90 | 0.00 | 2.40 | 24.81 | 75.34 | -31.73 | 53.65 | 0.5949 | 816.0 | 746.9 | |
| 0.00 | 1.54 | 0.00 | 0.96 | 26.42 | 74.69 | -32.37 | 51.76 | 0.6127 | 997.0 | 826.9 | |
| 0.00 | 2.72 | 0.00 | 1.71 | 26.58 | 74.60 | -32.46 | 51.59 | 0.6148 | 856.0 | 698.7 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 23.93 | 75.35 | -31.72 | 54.96 | 0.5891 | 707.0 | 625.2 | |
| 1.18 | 4.26 | 0.73 | 2.63 | 24.53 | 75.06 | -32.00 | 54.25 | 0.5962 | 818.5 | 738.4 | |
| 0.00 | 2.00 | 0.00 | 1.23 | 24.33 | 74.96 | -32.10 | 54.62 | 0.5961 | 721.0 | 622.9 | |
| 2.27 | 4.17 | 1.41 | 2.60 | 24.83 | 74.34 | -32.73 | 54.31 | 0.6063 | 889.7 | 795.5 | |
| 0.00 | 3.36 | 0.00 | 2.07 | 23.64 | 74.64 | -32.42 | 55.89 | 0.5954 | 802.0 | 672.9 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 24.18 | 74.49 | -32.58 | 55.17 | 0.6006 | 681.0 | 552.7 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 25.31 | 74.11 | -32.95 | 53.76 | 0.6118 | 698.0 | 547.8 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 25.69 | 73.91 | -33.15 | 53.34 | 0.6165 | 377.0 | 530.2 | |
| 0.00 | 2.63 | 0.00 | 1.64 | 24.91 | 73.99 | -33.07 | 54.43 | 0.6107 | 595.0 | 561.4 | |
| 0.00 | 1.81 | 0.00 | 1.12 | 23.63 | 74.37 | -32.70 | 56.09 | 0.5985 | 566.0 | 404.9 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 25.03 | 73.79 | -33.27 | 54.38 | 0.6137 | 658.0 | 545.0 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 25.24 | 73.37 | -33.70 | 54.36 | 0.6197 | 576.0 | 484.8 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 25.44 | 73.30 | -33.76 | 54.12 | 0.6216 | 467.0 | 378.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
