SDO HMI 2011-07-22 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.44 | 301.53 | 35.69 | 195.37 | -22.96 | 134.73 | 29.31 | 224.44 | 0.6452 | -211.7 | -156.0 | |
|
previous
or next observation for the same group /

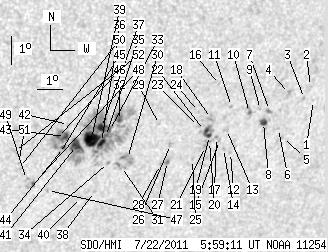

back to the solar disc SDO HMI 2011-07-22 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.44 | -22.01 | 142.13 | 36.71 | 231.70 | 0.7086 | 691.0 | 564.0 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -21.52 | 141.87 | 36.45 | 232.10 | 0.7027 | 283.0 | 408.2 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -21.92 | 141.74 | 36.32 | 231.53 | 0.7041 | 615.0 | 487.1 | |
| 0.00 | 3.99 | 0.00 | 2.75 | -21.72 | 141.07 | 35.65 | 231.29 | 0.6962 | 677.0 | 582.8 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -23.23 | 141.24 | 35.82 | 229.62 | 0.7083 | 466.0 | 292.2 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -22.90 | 140.97 | 35.55 | 229.80 | 0.7035 | 559.0 | 440.6 | |
| 0.27 | 2.27 | 0.19 | 1.56 | -22.26 | 140.42 | 35.00 | 230.15 | 0.6937 | 771.3 | 745.9 | |
| 3.18 | 5.90 | 2.18 | 4.05 | -22.66 | 140.29 | 34.87 | 229.58 | 0.6954 | 829.1 | 594.8 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -22.20 | 140.04 | 34.62 | 229.93 | 0.6897 | 708.0 | 568.5 | |
| 1.36 | 3.18 | 0.92 | 2.15 | -22.29 | 139.62 | 34.20 | 229.51 | 0.6862 | 707.4 | 654.7 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -22.04 | 138.84 | 33.42 | 229.19 | 0.6768 | 702.0 | 560.1 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -23.64 | 139.25 | 33.83 | 227.62 | 0.6927 | 550.0 | 364.4 | |
| 0.00 | 2.81 | 0.00 | 1.90 | -22.83 | 138.86 | 33.44 | 228.26 | 0.6829 | 563.0 | 488.1 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -23.48 | 138.93 | 33.51 | 227.54 | 0.6885 | 445.0 | 386.8 | |
| 0.00 | 1.45 | 0.00 | 0.98 | -23.20 | 138.69 | 33.27 | 227.69 | 0.6841 | 544.0 | 449.3 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -21.26 | 138.17 | 32.75 | 229.59 | 0.6643 | 673.0 | 579.1 | |
| 0.00 | 1.63 | 0.00 | 1.10 | -23.09 | 138.54 | 33.12 | 227.70 | 0.6818 | 696.0 | 601.3 | |
| 0.00 | 3.81 | 0.00 | 2.55 | -22.42 | 138.16 | 32.74 | 228.18 | 0.6730 | 812.0 | 758.4 | |
| 1.54 | 10.71 | 1.04 | 7.18 | -23.00 | 138.24 | 32.82 | 227.55 | 0.6783 | 820.6 | 796.5 | |
| 0.00 | 5.26 | 0.00 | 3.55 | -23.21 | 138.29 | 32.87 | 227.35 | 0.6805 | 607.0 | 663.1 | |
| 0.00 | 2.09 | 0.00 | 1.41 | -23.38 | 138.18 | 32.76 | 227.06 | 0.6808 | 798.0 | 662.7 | |
| 0.45 | -19.00 | 0.30 | -19.00 | -22.82 | 137.99 | 32.57 | 227.56 | 0.6746 | 844.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.91 | -22.67 | 137.71 | 32.29 | 227.51 | 0.6708 | 684.0 | 558.9 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -22.15 | 137.58 | 32.16 | 228.02 | 0.6654 | 415.0 | 484.5 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -23.81 | 137.79 | 32.37 | 226.24 | 0.6805 | 690.0 | 573.8 | |
| 0.00 | 2.09 | 0.00 | 1.38 | -23.24 | 136.77 | 31.35 | 226.04 | 0.6665 | 698.0 | 549.3 | |
| 0.36 | 2.18 | 0.24 | 1.45 | -23.83 | 136.81 | 31.39 | 225.39 | 0.6716 | 824.5 | 712.2 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -23.92 | 136.56 | 31.14 | 225.06 | 0.6701 | 698.0 | 527.7 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -22.52 | 136.16 | 30.74 | 226.35 | 0.6548 | -474.0 | -367.2 | |
| 0.00 | 9.80 | 0.00 | 6.41 | -23.65 | 135.22 | 29.80 | 224.17 | 0.6555 | -22.0 | 78.4 | |
| 0.00 | 5.35 | 0.00 | 3.51 | -23.92 | 135.05 | 29.63 | 223.71 | 0.6563 | 78.0 | -186.3 | |
| 1.91 | 178.66 | 1.22 | 114.48 | -22.32 | 134.59 | 29.17 | 225.17 | 0.6380 | -775.8 | -381.3 | |
| 1.00 | -32.00 | 0.64 | -32.00 | -22.64 | 134.29 | 28.87 | 224.49 | 0.6381 | -612.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -23.76 | 134.51 | 29.09 | 223.40 | 0.6500 | -539.0 | -452.7 | |
| 1.18 | -32.00 | 0.76 | -32.00 | -22.85 | 134.18 | 28.76 | 224.15 | 0.6389 | -668.2 | 999999 | |
| 3.27 | -32.00 | 2.10 | -32.00 | -23.05 | 134.08 | 28.66 | 223.81 | 0.6397 | -734.7 | 999999 | |
| 5.53 | -32.00 | 3.54 | -32.00 | -22.53 | 133.96 | 28.54 | 224.32 | 0.6339 | -1034.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -24.75 | 134.23 | 28.81 | 222.00 | 0.6563 | -389.0 | -407.7 | |
| 16.97 | -32.00 | 10.85 | -32.00 | -22.89 | 133.67 | 28.25 | 223.60 | 0.6344 | -1101.3 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.47 | -24.94 | 133.78 | 28.36 | 221.36 | 0.6541 | -570.0 | -450.4 | |
| 9.53 | -32.00 | 6.07 | -32.00 | -23.11 | 133.15 | 27.73 | 222.84 | 0.6317 | -915.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -22.37 | 132.69 | 27.27 | 223.26 | 0.6206 | -660.0 | -516.9 | |
| 4.36 | 26.68 | 2.76 | 16.86 | -22.78 | 132.67 | 27.25 | 222.75 | 0.6242 | -1048.9 | -698.7 | |
| 1.72 | -43.00 | 1.09 | -43.00 | -23.16 | 132.68 | 27.26 | 222.31 | 0.6278 | -757.8 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -23.36 | 132.57 | 27.15 | 221.97 | 0.6287 | -549.0 | -449.0 | |
| 1.00 | -43.00 | 0.63 | -43.00 | -22.80 | 132.38 | 26.96 | 222.42 | 0.6217 | -1020.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -24.64 | 132.41 | 26.99 | 220.36 | 0.6394 | -548.0 | -360.9 | |
| 1.81 | 5.44 | 1.16 | 3.47 | -24.37 | 131.83 | 26.41 | 220.06 | 0.6317 | -731.2 | -522.5 | |
| 0.00 | 1.72 | 0.00 | 1.09 | -24.22 | 131.53 | 26.11 | 219.93 | 0.6277 | -561.0 | -519.3 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -23.79 | 131.18 | 25.76 | 220.04 | 0.6203 | -223.0 | -288.0 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -23.65 | 131.11 | 25.69 | 220.13 | 0.6184 | -585.0 | -553.4 | |
| 0.00 | 3.18 | 0.00 | 1.99 | -23.22 | 130.88 | 25.46 | 220.36 | 0.6121 | -714.0 | -537.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
