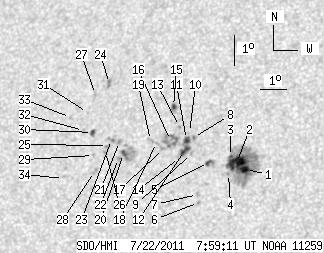

SDO HMI 2011-07-22 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.76 | 183.66 | 20.79 | 107.04 | 24.34 | 78.09 | -26.23 | 49.75 | 0.5289 | -271.7 | -208.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-22 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.72 | 86.75 | 2.70 | 49.68 | 23.89 | 80.24 | -24.08 | 48.42 | 0.5008 | -1220.9 | -518.9 | |
| 12.61 | -1.00 | 7.24 | -1.00 | 24.10 | 79.87 | -24.45 | 48.46 | 0.5068 | -1039.1 | 999999 | |
| 1.09 | -1.00 | 0.63 | -1.00 | 24.29 | 79.61 | -24.71 | 48.43 | 0.5114 | -595.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 23.74 | 79.65 | -24.67 | 49.28 | 0.5062 | -470.0 | -402.2 | |
| 2.45 | 5.44 | 1.42 | 3.15 | 24.06 | 78.85 | -25.48 | 49.56 | 0.5181 | -738.8 | -674.4 | |
| 0.00 | 1.63 | 0.00 | 0.94 | 22.77 | 78.75 | -25.58 | 51.78 | 0.5087 | -744.0 | -556.8 | |
| 0.00 | 2.09 | 0.00 | 1.20 | 23.02 | 78.66 | -25.67 | 51.44 | 0.5118 | -826.0 | -576.7 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 24.85 | 78.12 | -26.21 | 49.03 | 0.5329 | -914.0 | -765.2 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 24.33 | 78.16 | -26.17 | 49.80 | 0.5281 | -871.0 | -691.7 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 25.01 | 77.93 | -26.40 | 48.96 | 0.5363 | -375.0 | -373.8 | |
| 3.45 | 12.07 | 2.02 | 7.06 | 24.78 | 77.87 | -26.46 | 49.37 | 0.5350 | -900.3 | -869.3 | |
| 4.36 | -11.00 | 2.54 | -11.00 | 24.42 | 77.88 | -26.45 | 49.93 | 0.5320 | -920.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 25.19 | 77.51 | -26.82 | 49.07 | 0.5424 | -814.0 | -701.5 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 24.19 | 77.74 | -26.58 | 50.42 | 0.5317 | -471.0 | -475.1 | |
| 2.18 | 5.63 | 1.29 | 3.33 | 25.83 | 77.13 | -27.20 | 48.45 | 0.5518 | -724.6 | -557.8 | |
| 0.00 | 14.79 | 0.00 | 8.70 | 24.72 | 77.28 | -27.04 | 50.01 | 0.5412 | -283.0 | -310.6 | |
| 0.00 | 1.91 | 0.00 | 1.12 | 24.45 | 77.08 | -27.25 | 50.61 | 0.5413 | -620.0 | -525.6 | |
| 0.00 | 0.73 | 0.00 | 0.43 | 24.64 | 76.77 | -27.55 | 50.60 | 0.5463 | -443.0 | -354.8 | |
| 0.00 | 2.90 | 0.00 | 1.72 | 24.69 | 76.53 | -27.79 | 50.72 | 0.5494 | -294.0 | -274.2 | |
| 2.18 | 15.97 | 1.30 | 9.49 | 24.23 | 75.62 | -28.71 | 52.21 | 0.5564 | 1006.8 | 572.5 | |
| 0.00 | 2.18 | 0.00 | 1.30 | 24.61 | 75.37 | -28.96 | 51.83 | 0.5620 | 792.0 | 664.6 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 24.07 | 75.47 | -28.86 | 52.60 | 0.5569 | 882.0 | 791.9 | |
| 0.00 | 2.54 | 0.00 | 1.52 | 24.67 | 75.05 | -29.28 | 52.01 | 0.5660 | 847.0 | 767.6 | |
| 0.00 | 3.72 | 0.00 | 2.27 | 26.48 | 74.48 | -29.85 | 49.77 | 0.5857 | 823.0 | 811.8 | |
| 0.00 | 2.27 | 0.00 | 1.36 | 24.47 | 74.94 | -29.38 | 52.40 | 0.5657 | 805.0 | 666.4 | |
| 0.00 | 1.63 | 0.00 | 0.98 | 24.27 | 74.92 | -29.41 | 52.73 | 0.5646 | 839.0 | 587.4 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 26.10 | 74.03 | -30.29 | 50.68 | 0.5877 | 763.0 | 593.4 | |
| 0.00 | 3.18 | 0.00 | 1.90 | 23.61 | 74.66 | -29.66 | 53.95 | 0.5630 | 742.0 | 645.5 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 24.12 | 74.49 | -29.83 | 53.29 | 0.5685 | 704.0 | 591.2 | |
| 2.72 | 3.27 | 1.65 | 1.98 | 24.86 | 74.26 | -30.06 | 52.34 | 0.5763 | 805.2 | 671.5 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 25.50 | 73.89 | -30.44 | 51.67 | 0.5850 | 687.0 | 525.6 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 24.91 | 73.90 | -30.43 | 52.55 | 0.5808 | 638.0 | 539.7 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 25.31 | 73.27 | -31.05 | 52.42 | 0.5905 | 560.0 | 462.4 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 23.34 | 73.54 | -30.79 | 55.23 | 0.5743 | 301.0 | 369.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
