SDO HMI 2011-07-22 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.16 | 257.80 | 40.01 | 169.58 | -22.90 | 134.58 | 30.80 | 225.87 | 0.6588 | -282.3 | -172.1 | |
|
previous
or next observation for the same group /

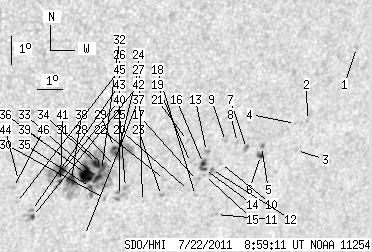

back to the solar disc SDO HMI 2011-07-22 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.35 | -19.18 | 143.30 | 39.52 | 236.99 | 0.7190 | 31.0 | 88.6 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -21.55 | 141.96 | 38.18 | 233.25 | 0.7198 | 410.0 | 323.1 | |
| 0.00 | 1.27 | 0.00 | 0.91 | -22.56 | 141.82 | 38.04 | 231.96 | 0.7249 | 589.0 | 429.1 | |
| 0.00 | 0.73 | 0.00 | 0.51 | -21.62 | 141.48 | 37.71 | 232.84 | 0.7157 | 589.0 | 517.8 | |
| 0.64 | 1.72 | 0.44 | 1.21 | -22.34 | 140.30 | 36.52 | 231.17 | 0.7089 | 691.4 | 712.2 | |
| 2.45 | 4.17 | 1.72 | 2.93 | -22.65 | 140.35 | 36.58 | 230.84 | 0.7115 | 803.8 | 695.1 | |
| 0.00 | 3.36 | 0.00 | 2.33 | -22.37 | 139.69 | 35.92 | 230.69 | 0.7034 | 778.0 | 611.0 | |
| 0.00 | 1.63 | 0.00 | 1.13 | -22.15 | 139.26 | 35.48 | 230.64 | 0.6976 | 672.0 | 527.9 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -22.09 | 138.76 | 34.98 | 230.34 | 0.6923 | 698.0 | 624.1 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -22.84 | 138.78 | 35.00 | 229.46 | 0.6979 | 622.0 | 556.2 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -24.62 | 139.17 | 35.39 | 227.69 | 0.7143 | 598.0 | 511.1 | |
| 1.18 | 3.81 | 0.81 | 2.63 | -23.03 | 138.47 | 34.69 | 229.00 | 0.6963 | 642.8 | 549.7 | |
| 0.00 | 3.63 | 0.00 | 2.47 | -22.39 | 138.08 | 34.31 | 229.46 | 0.6880 | 871.0 | 746.6 | |
| 1.54 | 7.17 | 1.06 | 4.90 | -23.01 | 138.18 | 34.41 | 228.80 | 0.6935 | 832.9 | 807.7 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -23.22 | 138.24 | 34.47 | 228.60 | 0.6956 | 803.0 | 654.6 | |
| 1.54 | -14.00 | 1.05 | -14.00 | -22.80 | 138.08 | 34.30 | 228.97 | 0.6910 | 956.4 | 999999 | |
| 0.00 | 3.99 | 0.00 | 2.74 | -23.38 | 138.01 | 34.23 | 228.23 | 0.6946 | 642.0 | 585.8 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -23.90 | 138.09 | 34.31 | 227.68 | 0.6992 | 549.0 | 398.6 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -22.74 | 137.54 | 33.77 | 228.62 | 0.6854 | 653.0 | 492.5 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -23.71 | 137.75 | 33.97 | 227.64 | 0.6946 | 577.0 | 476.2 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -21.97 | 137.21 | 33.44 | 229.28 | 0.6765 | 813.0 | 658.1 | |
| 0.00 | 1.63 | 0.00 | 1.10 | -23.28 | 136.66 | 32.89 | 227.28 | 0.6812 | 443.0 | 456.4 | |
| 0.00 | 1.63 | 0.00 | 1.11 | -23.83 | 136.70 | 32.92 | 226.66 | 0.6859 | 768.0 | 633.1 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -24.01 | 136.00 | 32.22 | 225.88 | 0.6807 | 199.0 | 259.7 | |
| 0.00 | 2.72 | 0.00 | 1.81 | -23.48 | 135.19 | 31.41 | 225.80 | 0.6690 | 435.0 | 298.3 | |
| 0.00 | 7.62 | 0.00 | 5.07 | -23.75 | 135.02 | 31.25 | 225.35 | 0.6697 | 91.0 | -173.6 | |
| 2.63 | 29.67 | 1.72 | 19.41 | -22.29 | 134.57 | 30.79 | 226.68 | 0.6534 | -732.0 | -237.9 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -22.73 | 134.60 | 30.83 | 226.18 | 0.6574 | -211.0 | -215.4 | |
| 1.45 | -27.00 | 0.94 | -27.00 | -22.07 | 134.40 | 30.63 | 226.79 | 0.6500 | -833.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.08 | -23.83 | 134.46 | 30.68 | 224.76 | 0.6652 | -386.0 | -328.1 | |
| 3.45 | 101.17 | 2.25 | 65.94 | -22.68 | 134.13 | 30.35 | 225.82 | 0.6524 | -714.4 | -378.1 | |
| 0.54 | -31.00 | 0.36 | -31.00 | -22.85 | 134.09 | 30.32 | 225.59 | 0.6535 | -665.0 | 999999 | |
| 4.26 | -31.00 | 2.79 | -31.00 | -23.12 | 134.01 | 30.23 | 225.19 | 0.6550 | -655.8 | 999999 | |
| 4.45 | -31.00 | 2.89 | -31.00 | -22.59 | 133.84 | 30.06 | 225.66 | 0.6490 | -1026.2 | 999999 | |
| 2.09 | -31.00 | 1.37 | -31.00 | -23.42 | 133.82 | 30.04 | 224.66 | 0.6558 | -536.2 | 999999 | |
| 17.06 | -31.00 | 11.08 | -31.00 | -22.96 | 133.55 | 29.77 | 224.96 | 0.6493 | -1039.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -25.10 | 134.02 | 30.25 | 222.93 | 0.6720 | -535.0 | -447.4 | |
| 8.08 | 25.32 | 5.23 | 16.43 | -23.10 | 133.01 | 29.23 | 224.29 | 0.6456 | -911.6 | -279.6 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -22.33 | 132.57 | 28.79 | 224.79 | 0.6346 | -642.0 | -595.5 | |
| 6.17 | 28.22 | 3.96 | 18.11 | -22.81 | 132.56 | 28.79 | 224.21 | 0.6388 | -1019.4 | -654.2 | |
| 1.63 | -40.00 | 1.05 | -40.00 | -23.16 | 132.61 | 28.83 | 223.85 | 0.6423 | -717.3 | 999999 | |
| 2.00 | 5.99 | 1.29 | 3.87 | -24.33 | 131.83 | 28.05 | 221.74 | 0.6458 | -708.5 | -557.4 | |
| 0.00 | 1.91 | 0.00 | 1.23 | -24.12 | 131.74 | 27.96 | 221.90 | 0.6431 | -816.0 | -620.6 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -23.05 | 131.00 | 27.23 | 222.40 | 0.6266 | -647.0 | -586.7 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -23.82 | 131.10 | 27.32 | 221.61 | 0.6346 | -631.0 | -490.4 | |
| 0.00 | 2.18 | 0.00 | 1.38 | -23.29 | 130.87 | 27.09 | 221.99 | 0.6275 | -724.0 | -612.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
