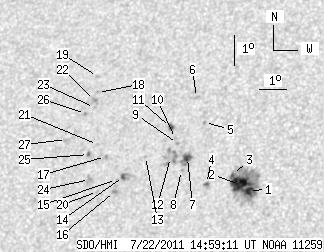

SDO HMI 2011-07-22 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.55 | 154.00 | 20.55 | 87.14 | 24.50 | 78.29 | -22.18 | 45.18 | 0.4853 | -299.0 | -202.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-22 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.72 | 84.25 | 2.62 | 46.99 | 23.88 | 80.29 | -20.18 | 43.82 | 0.4575 | -1184.8 | -481.7 | |
| 18.86 | -1.00 | 10.53 | -1.00 | 24.06 | 79.94 | -20.53 | 43.98 | 0.4631 | -1007.0 | 999999 | |
| 1.09 | -1.00 | 0.61 | -1.00 | 24.37 | 79.63 | -20.84 | 43.85 | 0.4696 | -533.5 | 999999 | |
| 1.27 | 2.99 | 0.71 | 1.68 | 24.06 | 78.76 | -21.71 | 45.46 | 0.4759 | -789.0 | -615.5 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 26.03 | 78.31 | -22.16 | 42.89 | 0.5000 | -776.0 | -617.9 | |
| 0.00 | 2.54 | 0.00 | 1.46 | 26.83 | 77.85 | -22.62 | 42.22 | 0.5127 | -654.0 | -493.3 | |
| 5.08 | 10.07 | 2.89 | 5.72 | 24.87 | 77.92 | -22.55 | 45.14 | 0.4929 | -924.9 | -758.7 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 24.45 | 77.78 | -22.69 | 45.98 | 0.4903 | -758.0 | -723.1 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 25.31 | 77.47 | -23.00 | 44.96 | 0.5019 | -820.0 | -653.2 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 25.47 | 77.36 | -23.11 | 44.83 | 0.5046 | -495.0 | -460.5 | |
| 2.54 | 3.08 | 1.46 | 1.77 | 25.83 | 77.10 | -23.37 | 44.58 | 0.5106 | -696.5 | -659.3 | |
| 0.00 | 13.78 | 0.00 | 7.87 | 24.85 | 77.30 | -23.17 | 45.87 | 0.4993 | -108.0 | -302.5 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 24.86 | 76.39 | -24.09 | 46.87 | 0.5094 | -466.0 | -360.9 | |
| 1.81 | 7.80 | 1.04 | 4.48 | 24.18 | 75.72 | -24.76 | 48.65 | 0.5109 | 972.4 | 550.3 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 24.08 | 75.48 | -24.99 | 49.06 | 0.5127 | 766.0 | 636.5 | |
| 0.00 | 2.27 | 0.00 | 1.30 | 23.69 | 75.49 | -24.98 | 49.68 | 0.5093 | 868.0 | 755.5 | |
| 0.00 | 1.72 | 0.00 | 1.00 | 24.80 | 74.92 | -25.56 | 48.47 | 0.5252 | 869.0 | 789.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 26.87 | 74.13 | -26.35 | 46.10 | 0.5515 | 579.0 | 486.3 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 27.40 | 73.99 | -26.48 | 45.47 | 0.5574 | 503.0 | 315.4 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 23.67 | 74.87 | -25.61 | 50.33 | 0.5162 | 668.0 | 590.8 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 25.18 | 74.53 | -25.94 | 48.25 | 0.5326 | 751.0 | 573.9 | |
| 0.00 | 4.35 | 0.00 | 2.58 | 26.61 | 74.08 | -26.39 | 46.54 | 0.5497 | 821.0 | 652.1 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 26.38 | 74.13 | -26.34 | 46.82 | 0.5471 | 806.0 | 692.1 | |
| 0.00 | 4.90 | 0.00 | 2.84 | 24.04 | 74.49 | -25.98 | 50.09 | 0.5236 | 857.0 | 691.9 | |
| 1.18 | 1.45 | 0.69 | 0.85 | 24.85 | 74.27 | -26.20 | 49.03 | 0.5327 | 791.5 | 691.0 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 26.17 | 73.84 | -26.63 | 47.41 | 0.5485 | 799.0 | 674.0 | |
| 0.00 | 1.63 | 0.00 | 0.96 | 25.30 | 73.34 | -27.14 | 49.20 | 0.5468 | 689.0 | 563.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
