SDO HMI 2011-07-22 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.55 | 142.81 | 18.73 | 80.26 | 24.43 | 78.26 | -21.11 | 43.96 | 0.4730 | -256.4 | -176.2 | |
|
previous
or next observation for the same group /

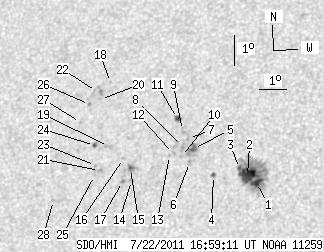

back to the solar disc SDO HMI 2011-07-22 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.35 | 81.51 | 3.51 | 45.17 | 23.84 | 80.29 | -19.08 | 42.38 | 0.4453 | -1125.4 | -468.3 | |
| 16.59 | -1.00 | 9.20 | -1.00 | 24.06 | 79.93 | -19.43 | 42.51 | 0.4513 | -1024.0 | 999999 | |
| 1.00 | -1.00 | 0.55 | -1.00 | 24.28 | 79.62 | -19.75 | 42.59 | 0.4569 | -684.7 | 999999 | |
| 1.54 | 1.45 | 0.86 | 0.81 | 24.03 | 78.73 | -20.63 | 44.17 | 0.4638 | -744.9 | 0.0 | |
| 2.63 | 9.88 | 1.48 | 5.58 | 24.87 | 77.87 | -21.50 | 43.88 | 0.4815 | -1002.9 | -774.3 | |
| 0.00 | 1.72 | 0.00 | 0.97 | 24.42 | 77.80 | -21.56 | 44.69 | 0.4777 | -572.0 | -427.6 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 25.19 | 77.63 | -21.74 | 43.67 | 0.4872 | -635.0 | -557.9 | |
| 0.00 | 3.26 | 0.00 | 1.85 | 24.93 | 77.46 | -21.90 | 44.29 | 0.4864 | -718.0 | -590.0 | |
| 0.00 | 1.99 | 0.00 | 1.13 | 25.44 | 77.36 | -22.00 | 43.60 | 0.4925 | -540.0 | -520.0 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 24.60 | 77.48 | -21.88 | 44.78 | 0.4830 | -603.0 | -446.4 | |
| 2.36 | 3.72 | 1.35 | 2.12 | 25.83 | 77.10 | -22.26 | 43.31 | 0.4990 | -754.8 | -611.5 | |
| 0.00 | 1.72 | 0.00 | 0.98 | 24.69 | 77.18 | -22.19 | 45.00 | 0.4871 | -616.0 | -445.3 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 24.62 | 77.05 | -22.32 | 45.27 | 0.4879 | -446.0 | -349.1 | |
| 0.00 | 2.18 | 0.00 | 1.24 | 23.77 | 75.83 | -23.53 | 48.03 | 0.4935 | 794.0 | 652.2 | |
| 1.36 | 8.16 | 0.78 | 4.66 | 24.16 | 75.72 | -23.65 | 47.52 | 0.4982 | 1009.2 | 578.4 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 24.47 | 75.40 | -23.96 | 47.36 | 0.5045 | 782.0 | 607.8 | |
| 0.00 | 1.72 | 0.00 | 0.98 | 23.73 | 75.51 | -23.85 | 48.45 | 0.4967 | 934.0 | 786.5 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 26.92 | 74.38 | -24.99 | 44.68 | 0.5377 | 669.0 | 577.5 | |
| 0.00 | 3.08 | 0.00 | 1.78 | 24.84 | 74.77 | -24.59 | 47.44 | 0.5148 | 765.0 | 735.6 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 26.35 | 74.13 | -25.23 | 45.77 | 0.5351 | 688.0 | 539.6 | |
| 0.00 | 1.63 | 0.00 | 0.94 | 24.06 | 74.60 | -24.76 | 48.87 | 0.5098 | 757.0 | 708.4 | |
| 0.00 | 7.34 | 0.00 | 4.31 | 26.61 | 73.92 | -25.44 | 45.61 | 0.5396 | 425.0 | 603.9 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 24.21 | 74.42 | -24.94 | 48.80 | 0.5131 | 800.0 | 596.7 | |
| 1.72 | 2.18 | 1.00 | 1.26 | 24.85 | 74.25 | -25.11 | 47.95 | 0.5206 | 710.3 | 661.8 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 23.89 | 74.45 | -24.91 | 49.29 | 0.5101 | 764.0 | 633.9 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 26.18 | 73.76 | -25.60 | 46.41 | 0.5375 | 750.0 | 643.7 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 25.58 | 73.56 | -25.80 | 47.51 | 0.5344 | 750.0 | 604.1 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 23.03 | 73.12 | -26.24 | 51.99 | 0.5185 | 717.0 | 594.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
