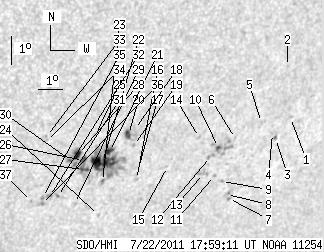

SDO HMI 2011-07-22 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.53 | 172.75 | 30.66 | 120.63 | -23.09 | 134.39 | 35.59 | 229.51 | 0.7053 | -385.0 | -107.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-22 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.90 | -22.00 | 140.97 | 42.16 | 235.17 | 0.7604 | 706.0 | 543.1 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -20.24 | 140.23 | 41.42 | 236.82 | 0.7439 | 410.0 | 346.9 | |
| 1.00 | 1.72 | 0.76 | 1.31 | -22.69 | 140.56 | 41.75 | 234.14 | 0.7604 | 568.9 | 546.6 | |
| 0.00 | 1.09 | 0.00 | 0.82 | -22.51 | 140.36 | 41.55 | 234.23 | 0.7575 | 691.0 | 548.6 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -22.10 | 139.73 | 40.92 | 234.33 | 0.7493 | 687.0 | 580.3 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -22.58 | 138.77 | 39.96 | 233.17 | 0.7432 | 526.0 | 463.0 | |
| 0.00 | 1.54 | 0.00 | 1.17 | -24.68 | 139.24 | 40.44 | 231.07 | 0.7599 | 538.0 | 464.5 | |
| 0.00 | 2.63 | 0.00 | 1.99 | -24.53 | 139.10 | 40.29 | 231.14 | 0.7577 | 504.0 | 450.0 | |
| 0.00 | 1.45 | 0.00 | 1.08 | -24.06 | 138.70 | 39.89 | 231.43 | 0.7513 | 584.0 | 533.0 | |
| 1.36 | 14.69 | 1.00 | 10.79 | -22.85 | 138.13 | 39.33 | 232.45 | 0.7389 | 941.9 | 663.2 | |
| 0.00 | 1.00 | 0.00 | 0.74 | -23.83 | 138.31 | 39.50 | 231.44 | 0.7464 | 539.0 | 451.1 | |
| 0.00 | 3.08 | 0.00 | 2.26 | -23.15 | 137.89 | 39.09 | 231.95 | 0.7384 | 684.0 | 654.3 | |
| 0.00 | 5.17 | 0.00 | 3.80 | -23.73 | 137.80 | 38.99 | 231.22 | 0.7411 | 536.0 | 483.6 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -22.46 | 137.19 | 38.38 | 232.30 | 0.7276 | 742.0 | 642.2 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -23.39 | 136.16 | 37.35 | 230.50 | 0.7239 | 513.0 | 430.6 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -23.78 | 134.99 | 36.19 | 229.23 | 0.7157 | -351.0 | -296.2 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -23.64 | 134.95 | 36.14 | 229.36 | 0.7143 | -454.0 | -368.0 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -22.03 | 134.37 | 35.57 | 230.83 | 0.6977 | -184.0 | -157.9 | |
| 0.00 | 1.36 | 0.00 | 0.94 | -22.58 | 134.50 | 35.69 | 230.27 | 0.7028 | -577.0 | -510.3 | |
| 4.08 | 9.88 | 2.81 | 6.82 | -22.19 | 134.18 | 35.37 | 230.50 | 0.6970 | -769.5 | -392.2 | |
| 4.17 | 72.71 | 2.86 | 50.13 | -22.74 | 133.57 | 34.76 | 229.39 | 0.6950 | -830.8 | -288.0 | |
| 21.31 | -21.00 | 14.66 | -21.00 | -23.10 | 133.40 | 34.59 | 228.82 | 0.6960 | -814.1 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.70 | -23.77 | 133.60 | 34.79 | 228.20 | 0.7028 | -504.0 | -373.9 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -24.96 | 133.81 | 35.01 | 227.00 | 0.7134 | -503.0 | -372.7 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -22.12 | 132.84 | 34.03 | 229.56 | 0.6835 | -656.0 | -552.0 | |
| 3.90 | 31.55 | 2.65 | 21.45 | -22.99 | 132.60 | 33.80 | 228.33 | 0.6877 | -774.1 | -556.0 | |
| 3.72 | -26.00 | 2.54 | -26.00 | -23.31 | 132.69 | 33.89 | 228.03 | 0.6909 | -695.0 | 999999 | |
| 3.81 | -26.00 | 2.58 | -26.00 | -22.77 | 132.30 | 33.49 | 228.35 | 0.6832 | -984.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -24.49 | 132.68 | 33.88 | 226.67 | 0.6997 | -211.0 | -123.5 | |
| 1.18 | -26.00 | 0.80 | -26.00 | -22.97 | 132.08 | 33.27 | 227.94 | 0.6826 | -772.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -24.20 | 131.92 | 33.11 | 226.38 | 0.6905 | -613.0 | -547.1 | |
| 0.00 | 2.63 | 0.00 | 1.79 | -24.19 | 131.59 | 32.78 | 226.13 | 0.6875 | -756.0 | -657.1 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -22.09 | 130.90 | 32.09 | 228.02 | 0.6645 | -768.0 | -618.2 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -22.23 | 130.94 | 32.13 | 227.89 | 0.6659 | -554.0 | -439.9 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -24.21 | 131.32 | 32.51 | 225.88 | 0.6851 | -819.0 | -661.2 | |
| 0.00 | 2.72 | 0.00 | 1.85 | -24.45 | 131.35 | 32.54 | 225.63 | 0.6874 | -522.0 | -495.4 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -24.33 | 130.92 | 32.11 | 225.41 | 0.6824 | -700.0 | -496.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
