SDO HMI 2011-07-22 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.73 | 107.81 | 17.94 | 59.50 | 24.35 | 78.54 | -18.05 | 39.94 | 0.4401 | -355.9 | -223.4 | |
|
previous
or next observation for the same group /

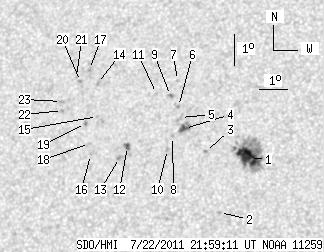

back to the solar disc SDO HMI 2011-07-22 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.48 | 65.37 | 13.35 | 35.66 | 23.94 | 80.13 | -16.46 | 38.33 | 0.4194 | -1089.6 | -480.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 22.15 | 79.35 | -17.23 | 42.61 | 0.4071 | -706.0 | -538.7 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 24.09 | 78.60 | -17.99 | 40.43 | 0.4364 | -957.0 | -770.0 | |
| 5.89 | 8.07 | 3.27 | 4.48 | 24.81 | 77.75 | -18.84 | 40.51 | 0.4530 | -900.7 | -715.0 | |
| 0.00 | 3.08 | 0.00 | 1.72 | 25.17 | 77.55 | -19.03 | 40.23 | 0.4589 | -713.0 | -584.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 25.52 | 77.42 | -19.16 | 39.87 | 0.4641 | -857.0 | -653.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 26.37 | 77.24 | -19.34 | 38.84 | 0.4751 | -601.0 | -380.0 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 24.55 | 77.37 | -19.22 | 41.47 | 0.4540 | -585.0 | -417.9 | |
| 0.00 | 2.81 | 0.00 | 1.58 | 25.87 | 77.08 | -19.51 | 39.81 | 0.4713 | -823.0 | -678.1 | |
| 0.00 | 1.72 | 0.00 | 0.96 | 24.12 | 77.26 | -19.33 | 42.31 | 0.4506 | -613.0 | -483.7 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 25.92 | 76.57 | -20.02 | 40.41 | 0.4769 | -524.0 | -423.2 | |
| 2.36 | 3.63 | 1.32 | 2.03 | 24.18 | 75.83 | -20.76 | 44.12 | 0.4664 | 916.2 | 813.4 | |
| 0.00 | 2.90 | 0.00 | 1.62 | 23.82 | 75.61 | -20.98 | 45.00 | 0.4652 | 926.0 | 790.1 | |
| 0.00 | 1.90 | 0.00 | 1.09 | 26.18 | 74.37 | -22.22 | 42.76 | 0.5018 | 868.0 | 674.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 25.11 | 74.58 | -22.01 | 44.16 | 0.4890 | 697.0 | 534.6 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 23.88 | 74.56 | -22.03 | 46.18 | 0.4774 | 796.0 | 561.1 | |
| 0.00 | 1.90 | 0.00 | 1.10 | 26.63 | 73.98 | -22.60 | 42.54 | 0.5102 | 930.0 | 787.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 24.23 | 74.46 | -22.13 | 45.72 | 0.4819 | 777.0 | 625.0 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 24.87 | 74.19 | -22.40 | 45.00 | 0.4909 | 1116.0 | 782.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 26.23 | 73.74 | -22.85 | 43.43 | 0.5088 | 858.0 | 708.5 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 26.39 | 73.56 | -23.03 | 43.39 | 0.5122 | 633.0 | 457.7 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 25.27 | 73.27 | -23.32 | 45.43 | 0.5045 | 888.0 | 723.2 | |
| 0.00 | 2.09 | 0.00 | 1.20 | 25.56 | 73.18 | -23.41 | 45.08 | 0.5082 | 669.0 | 533.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
