SDO HMI 2011-07-22 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.57 | 98.47 | 13.36 | 53.86 | 24.21 | 78.89 | -16.59 | 37.97 | 0.4239 | -426.0 | -346.2 | |
|
previous
or next observation for the same group /

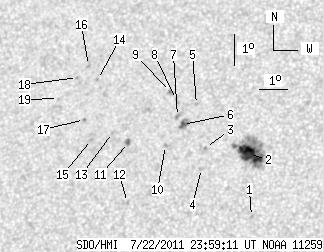

back to the solar disc SDO HMI 2011-07-22 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.87 | 21.93 | 80.43 | -15.05 | 39.37 | 0.3814 | -710.0 | -566.8 | |
| 21.22 | 63.20 | 11.51 | 34.28 | 23.91 | 80.13 | -15.35 | 36.54 | 0.4082 | -1127.7 | -540.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 24.10 | 78.58 | -16.90 | 38.78 | 0.4255 | -932.0 | -733.3 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 23.43 | 78.53 | -16.95 | 39.97 | 0.4182 | -691.0 | -540.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 25.49 | 78.07 | -17.42 | 37.42 | 0.4465 | -755.0 | -638.2 | |
| 3.35 | 8.16 | 1.85 | 4.50 | 24.83 | 77.67 | -17.81 | 39.02 | 0.4428 | -876.9 | -781.2 | |
| 0.00 | 3.26 | 0.00 | 1.81 | 25.08 | 77.46 | -18.03 | 38.95 | 0.4478 | -741.0 | -552.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 25.63 | 77.34 | -18.15 | 38.28 | 0.4552 | -646.0 | -551.6 | |
| 0.00 | 2.36 | 0.00 | 1.31 | 25.88 | 77.08 | -18.40 | 38.26 | 0.4605 | -729.0 | -661.4 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 24.13 | 77.18 | -18.31 | 40.86 | 0.4400 | -626.0 | -554.6 | |
| 0.00 | 2.81 | 0.00 | 1.56 | 24.19 | 75.86 | -19.62 | 42.61 | 0.4543 | 1004.0 | 844.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 22.27 | 76.12 | -19.37 | 45.54 | 0.4317 | 757.0 | 545.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 24.50 | 75.24 | -20.24 | 42.94 | 0.4640 | 745.0 | 581.7 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 26.20 | 74.39 | -21.09 | 41.38 | 0.4904 | 886.0 | 708.7 | |
| 0.00 | 1.72 | 0.00 | 0.97 | 24.25 | 74.53 | -20.95 | 44.26 | 0.4691 | 818.0 | 662.2 | |
| 0.00 | 1.81 | 0.00 | 1.04 | 26.65 | 73.98 | -21.51 | 41.22 | 0.4992 | 930.0 | 731.7 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 24.89 | 74.17 | -21.32 | 43.69 | 0.4793 | 976.0 | 744.0 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 26.25 | 73.66 | -21.83 | 42.22 | 0.4983 | 778.0 | 631.6 | |
| 0.00 | 0.73 | 0.00 | 0.41 | 25.54 | 73.10 | -22.38 | 43.95 | 0.4970 | 606.0 | 515.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
