SDO HMI 2011-07-23 00:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.91 | 121.79 | 24.57 | 89.96 | -23.11 | 134.46 | 39.53 | 232.17 | 0.7424 | -316.7 | -111.3 | |
|
previous
or next observation for the same group /

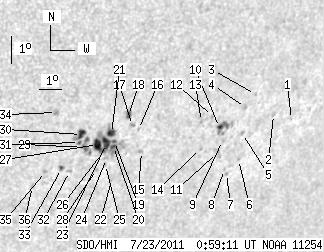

back to the solar disc SDO HMI 2011-07-23 00:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.53 | -22.83 | 141.51 | 46.58 | 236.56 | 0.8044 | 574.0 | 484.3 | |
| 0.00 | 2.27 | 0.00 | 1.84 | -22.60 | 140.55 | 45.62 | 236.34 | 0.7949 | 164.0 | 247.8 | |
| 0.00 | 0.54 | 0.00 | 0.43 | -21.84 | 139.40 | 44.46 | 236.60 | 0.7810 | 568.0 | 450.5 | |
| 0.00 | 1.63 | 0.00 | 1.29 | -22.26 | 139.10 | 44.17 | 235.96 | 0.7804 | 562.0 | 470.7 | |
| 0.00 | 2.00 | 0.00 | 1.59 | -23.17 | 139.34 | 44.40 | 235.06 | 0.7870 | 529.0 | 428.9 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -24.07 | 139.54 | 44.61 | 234.15 | 0.7933 | 531.0 | 446.0 | |
| 0.00 | 1.27 | 0.00 | 1.03 | -24.53 | 139.18 | 44.25 | 233.44 | 0.7925 | 572.0 | 470.3 | |
| 0.00 | 0.82 | 0.00 | 0.66 | -24.39 | 139.02 | 44.09 | 233.52 | 0.7904 | 587.0 | 569.2 | |
| 0.00 | 1.18 | 0.00 | 0.93 | -23.35 | 138.49 | 43.55 | 234.38 | 0.7804 | 507.0 | 445.8 | |
| 1.72 | 11.34 | 1.35 | 8.89 | -22.89 | 138.16 | 43.23 | 234.73 | 0.7751 | 918.3 | 655.8 | |
| 0.00 | 3.72 | 0.00 | 2.94 | -23.76 | 138.43 | 43.50 | 233.89 | 0.7820 | 401.0 | 451.2 | |
| 0.00 | 1.27 | 0.00 | 0.98 | -22.48 | 137.68 | 42.75 | 234.93 | 0.7687 | 695.0 | 583.9 | |
| 0.00 | 1.45 | 0.00 | 1.11 | -22.62 | 137.25 | 42.31 | 234.51 | 0.7654 | 710.0 | 648.9 | |
| 0.00 | 1.27 | 0.00 | 0.99 | -23.57 | 137.57 | 42.64 | 233.62 | 0.7734 | 558.0 | 530.6 | |
| 0.00 | 1.54 | 0.00 | 1.15 | -23.51 | 134.93 | 40.00 | 232.09 | 0.7493 | -447.0 | -358.9 | |
| 0.00 | 0.63 | 0.00 | 0.47 | -22.73 | 134.52 | 39.59 | 232.73 | 0.7409 | -475.0 | -334.9 | |
| 0.00 | 2.09 | 0.00 | 1.52 | -22.58 | 134.21 | 39.28 | 232.71 | 0.7370 | -636.0 | -534.9 | |
| 3.17 | 4.17 | 2.30 | 3.02 | -22.22 | 133.92 | 38.99 | 232.94 | 0.7321 | -615.7 | -492.5 | |
| 1.18 | 48.06 | 0.86 | 34.85 | -23.09 | 133.62 | 38.69 | 231.73 | 0.7347 | -468.7 | -325.1 | |
| 1.90 | -19.00 | 1.39 | -19.00 | -23.26 | 133.64 | 38.70 | 231.54 | 0.7359 | -438.6 | 999999 | |
| 4.99 | -19.00 | 3.61 | -19.00 | -22.80 | 133.39 | 38.46 | 231.91 | 0.7308 | -675.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -24.46 | 133.98 | 39.05 | 230.40 | 0.7465 | -438.0 | -334.8 | |
| 6.17 | -19.00 | 4.47 | -19.00 | -23.14 | 133.30 | 38.36 | 231.46 | 0.7320 | -775.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.13 | -23.67 | 133.48 | 38.55 | 230.97 | 0.7370 | -176.0 | -162.9 | |
| 0.00 | 1.45 | 0.00 | 1.06 | -23.87 | 133.51 | 38.58 | 230.75 | 0.7386 | -419.0 | -331.9 | |
| 0.91 | -19.00 | 0.66 | -19.00 | -23.44 | 133.23 | 38.30 | 231.06 | 0.7333 | -545.1 | 999999 | |
| 6.71 | -19.00 | 4.84 | -19.00 | -23.15 | 132.92 | 37.99 | 231.19 | 0.7286 | -872.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.99 | -24.03 | 133.18 | 38.25 | 230.35 | 0.7366 | -463.0 | -364.9 | |
| 0.00 | 10.16 | 0.00 | 7.28 | -23.23 | 132.48 | 37.55 | 230.80 | 0.7250 | -811.0 | -654.3 | |
| 5.17 | 9.34 | 3.67 | 6.63 | -22.76 | 132.12 | 37.19 | 231.09 | 0.7186 | -855.4 | -737.8 | |
| 0.63 | -30.00 | 0.45 | -30.00 | -23.04 | 132.13 | 37.20 | 230.78 | 0.7204 | -646.0 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.30 | -24.03 | 132.04 | 37.11 | 229.56 | 0.7262 | -558.0 | -470.5 | |
| 1.36 | 2.36 | 0.97 | 1.68 | -23.91 | 131.66 | 36.73 | 229.44 | 0.7220 | -625.7 | -611.2 | |
| 0.00 | 3.26 | 0.00 | 2.26 | -21.94 | 130.84 | 35.91 | 231.16 | 0.7008 | -765.0 | -554.5 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -23.98 | 131.02 | 36.09 | 228.90 | 0.7165 | -812.0 | -722.9 | |
| 0.00 | 1.45 | 0.00 | 1.03 | -24.48 | 130.65 | 35.72 | 228.05 | 0.7167 | -616.0 | -565.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
