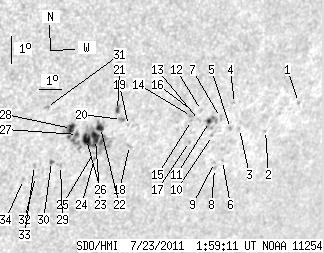

SDO HMI 2011-07-23 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.20 | 114.93 | 20.54 | 85.46 | -23.05 | 134.33 | 39.95 | 232.51 | 0.7460 | -224.4 | -119.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-23 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.62 | -22.51 | 142.28 | 47.90 | 237.56 | 0.8144 | 437.0 | 361.8 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -23.38 | 141.07 | 46.68 | 235.99 | 0.8078 | 445.0 | 425.3 | |
| 0.00 | 1.09 | 0.00 | 0.89 | -23.22 | 139.75 | 45.37 | 235.50 | 0.7958 | 619.0 | 534.2 | |
| 0.00 | 0.82 | 0.00 | 0.65 | -22.33 | 139.14 | 44.75 | 236.19 | 0.7860 | 556.0 | 534.0 | |
| 0.00 | 1.36 | 0.00 | 1.10 | -23.20 | 139.31 | 44.93 | 235.30 | 0.7918 | 569.0 | 437.5 | |
| 0.00 | 0.82 | 0.00 | 0.67 | -24.30 | 139.42 | 45.04 | 234.12 | 0.7982 | 584.0 | 529.4 | |
| 0.00 | 2.00 | 0.00 | 1.59 | -22.78 | 138.67 | 44.29 | 235.43 | 0.7841 | 510.0 | 489.7 | |
| 0.00 | 1.27 | 0.00 | 1.04 | -24.56 | 139.16 | 44.78 | 233.69 | 0.7972 | 525.0 | 442.8 | |
| 0.00 | 0.82 | 0.00 | 0.66 | -24.35 | 139.07 | 44.68 | 233.87 | 0.7954 | 633.0 | 589.9 | |
| 0.00 | 1.00 | 0.00 | 0.80 | -23.39 | 138.55 | 44.17 | 234.68 | 0.7861 | 460.0 | 398.1 | |
| 1.18 | 9.61 | 0.93 | 7.60 | -22.88 | 138.20 | 43.82 | 235.06 | 0.7805 | 875.9 | 678.4 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -22.47 | 137.68 | 43.29 | 235.23 | 0.7736 | 694.0 | 530.7 | |
| 0.00 | 1.09 | 0.00 | 0.85 | -22.82 | 137.72 | 43.34 | 234.86 | 0.7758 | 681.0 | 618.1 | |
| 0.00 | 1.72 | 0.00 | 1.33 | -22.66 | 137.29 | 42.91 | 234.81 | 0.7711 | 755.0 | 719.2 | |
| 0.00 | 1.18 | 0.00 | 0.92 | -22.80 | 137.35 | 42.96 | 234.68 | 0.7723 | 631.0 | 540.7 | |
| 0.00 | 1.18 | 0.00 | 0.91 | -22.45 | 137.21 | 42.83 | 235.01 | 0.7692 | 721.0 | 579.9 | |
| 0.00 | 1.18 | 0.00 | 0.93 | -23.53 | 137.55 | 43.17 | 233.96 | 0.7780 | 540.0 | 493.4 | |
| 0.00 | 1.90 | 0.00 | 1.43 | -23.50 | 134.86 | 40.47 | 232.40 | 0.7536 | -452.0 | -350.4 | |
| 0.00 | 0.63 | 0.00 | 0.47 | -22.79 | 134.55 | 40.17 | 233.02 | 0.7467 | -624.0 | -521.4 | |
| 0.00 | 2.99 | 0.00 | 2.20 | -22.57 | 134.17 | 39.79 | 233.05 | 0.7418 | -694.0 | -463.0 | |
| 2.63 | 2.81 | 1.92 | 2.05 | -22.24 | 133.89 | 39.51 | 233.24 | 0.7372 | -595.6 | -628.0 | |
| 3.99 | 49.34 | 2.91 | 36.05 | -22.79 | 133.35 | 38.97 | 232.26 | 0.7355 | -686.5 | -337.7 | |
| 7.71 | -22.00 | 5.63 | -22.00 | -23.20 | 133.28 | 38.89 | 231.73 | 0.7373 | -744.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.94 | -23.86 | 133.47 | 39.09 | 231.10 | 0.7432 | -430.0 | -326.8 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -23.65 | 133.35 | 38.97 | 231.26 | 0.7408 | -345.0 | -322.4 | |
| 5.80 | -22.00 | 4.22 | -22.00 | -23.18 | 132.89 | 38.50 | 231.50 | 0.7336 | -846.9 | 999999 | |
| 1.45 | 19.32 | 1.04 | 13.89 | -22.98 | 132.44 | 38.06 | 231.43 | 0.7281 | -677.9 | -678.7 | |
| 3.99 | -27.00 | 2.85 | -27.00 | -22.75 | 132.11 | 37.73 | 231.47 | 0.7236 | -862.4 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -24.03 | 132.08 | 37.69 | 229.97 | 0.7316 | -527.0 | -488.7 | |
| 1.45 | 1.90 | 1.04 | 1.37 | -23.86 | 131.64 | 37.26 | 229.86 | 0.7265 | -699.6 | -713.8 | |
| 0.00 | 2.18 | 0.00 | 1.52 | -21.97 | 130.83 | 36.45 | 231.51 | 0.7062 | -794.0 | -604.0 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -24.35 | 131.14 | 36.76 | 228.94 | 0.7253 | -508.0 | -385.5 | |
| 0.00 | 1.45 | 0.00 | 1.03 | -23.96 | 130.97 | 36.58 | 229.27 | 0.7210 | -745.0 | -602.8 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -24.43 | 130.66 | 36.28 | 228.51 | 0.7215 | -704.0 | -590.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
