SDO HMI 2011-07-23 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.94 | 98.33 | 15.12 | 53.53 | 24.39 | 78.94 | -15.45 | 35.80 | 0.4149 | -377.6 | -291.9 | |
|
previous
or next observation for the same group /

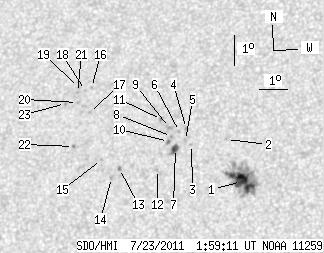

back to the solar disc SDO HMI 2011-07-23 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.49 | 64.85 | 12.13 | 34.99 | 23.89 | 80.17 | -14.22 | 34.59 | 0.3972 | -1117.4 | -489.6 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 25.24 | 79.49 | -14.90 | 33.76 | 0.4202 | 371.0 | 297.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 25.05 | 78.29 | -16.09 | 36.03 | 0.4287 | -716.0 | -582.2 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 25.56 | 78.04 | -16.34 | 35.66 | 0.4372 | -815.0 | -655.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 25.17 | 78.06 | -16.32 | 36.21 | 0.4323 | -924.0 | -637.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 25.46 | 77.81 | -16.57 | 36.17 | 0.4381 | -683.0 | -561.9 | |
| 4.63 | 6.44 | 2.54 | 3.53 | 24.90 | 77.75 | -16.63 | 37.11 | 0.4321 | -905.8 | -759.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 25.29 | 77.55 | -16.83 | 36.83 | 0.4385 | -819.0 | -709.9 | |
| 0.00 | 2.81 | 0.00 | 1.55 | 25.58 | 77.44 | -16.94 | 36.57 | 0.4430 | -848.0 | -621.5 | |
| 0.82 | 1.72 | 0.45 | 0.95 | 25.12 | 77.47 | -16.91 | 37.21 | 0.4373 | -633.9 | -580.7 | |
| 0.00 | 1.90 | 0.00 | 1.06 | 25.83 | 77.12 | -17.26 | 36.68 | 0.4490 | -800.0 | -595.4 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 24.21 | 77.21 | -17.17 | 39.04 | 0.4292 | -662.0 | -537.2 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 24.21 | 75.88 | -18.50 | 41.04 | 0.4427 | 1016.0 | 870.5 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 23.91 | 75.64 | -18.74 | 41.86 | 0.4419 | 937.0 | 814.9 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 24.48 | 75.20 | -19.18 | 41.55 | 0.4526 | 853.0 | 661.8 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 26.81 | 74.44 | -19.94 | 39.01 | 0.4854 | 758.0 | 598.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 25.99 | 74.52 | -19.86 | 40.13 | 0.4758 | 808.0 | 618.3 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 26.71 | 74.25 | -20.14 | 39.43 | 0.4862 | 758.0 | 611.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 26.80 | 73.97 | -20.41 | 39.65 | 0.4898 | 674.0 | 521.6 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 26.31 | 74.03 | -20.35 | 40.30 | 0.4840 | 718.0 | 627.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 26.63 | 73.97 | -20.41 | 39.89 | 0.4881 | 866.0 | 746.1 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 24.87 | 74.14 | -20.24 | 42.36 | 0.4678 | 848.0 | 722.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 26.26 | 73.60 | -20.78 | 40.91 | 0.4878 | 795.0 | 686.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
