SDO HMI 2011-07-23 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 6.26 | 0.96 | 4.44 | 5.54 | 45.80 | -45.84 | 87.19 | 0.7171 | -31.8 | -207.9 | |
|
previous
or next observation for the same group /

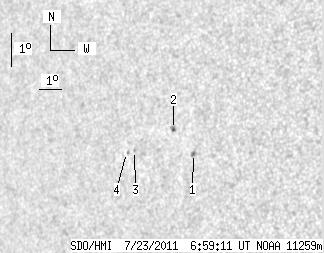

back to the solar disc SDO HMI 2011-07-23 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.27 | 0.00 | 1.58 | 5.29 | 46.84 | -44.80 | 87.59 | 0.7046 | -759.0 | -591.0 | |
| 1.36 | 2.54 | 0.96 | 1.80 | 5.96 | 45.90 | -45.74 | 86.60 | 0.7159 | -524.8 | -418.6 | |
| 0.00 | 0.91 | 0.00 | 0.66 | 5.22 | 44.23 | -47.41 | 87.57 | 0.7361 | 655.0 | 528.0 | |
| 0.00 | 0.54 | 0.00 | 0.40 | 5.13 | 43.88 | -47.77 | 87.66 | 0.7403 | 482.0 | 527.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
