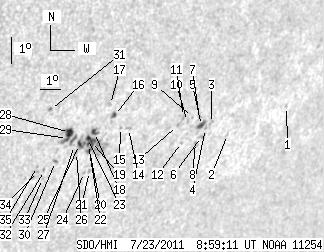

SDO HMI 2011-07-23 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.51 | 95.17 | 17.61 | 75.09 | -23.08 | 134.07 | 43.52 | 234.59 | 0.7786 | -199.0 | -178.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-23 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.92 | -22.58 | 142.39 | 51.85 | 239.21 | 0.8473 | 388.0 | 290.8 | |
| 0.00 | 1.09 | 0.00 | 0.96 | -23.34 | 139.70 | 49.16 | 237.20 | 0.8284 | 452.0 | 397.2 | |
| 0.00 | 1.72 | 0.00 | 1.48 | -22.89 | 138.68 | 48.13 | 237.23 | 0.8181 | 539.0 | 476.2 | |
| 0.00 | 0.82 | 0.00 | 0.70 | -23.05 | 138.45 | 47.91 | 236.95 | 0.8168 | 569.0 | 525.7 | |
| 3.99 | 5.08 | 3.39 | 4.31 | -22.93 | 138.20 | 47.65 | 236.96 | 0.8142 | 735.8 | 550.4 | |
| 0.00 | 2.45 | 0.00 | 2.10 | -23.31 | 138.38 | 47.84 | 236.61 | 0.8174 | 536.0 | 440.9 | |
| 0.00 | 1.91 | 0.00 | 1.61 | -22.67 | 137.98 | 47.44 | 237.14 | 0.8113 | 654.0 | 581.3 | |
| 0.00 | 1.36 | 0.00 | 1.16 | -23.51 | 138.18 | 47.63 | 236.30 | 0.8165 | 518.0 | 458.7 | |
| 0.00 | 0.82 | 0.00 | 0.68 | -22.61 | 137.61 | 47.07 | 237.03 | 0.8078 | 608.0 | 541.4 | |
| 0.00 | 1.36 | 0.00 | 1.14 | -22.74 | 137.43 | 46.88 | 236.80 | 0.8068 | 593.0 | 556.6 | |
| 0.00 | 1.72 | 0.00 | 1.43 | -22.55 | 137.15 | 46.60 | 236.87 | 0.8035 | 701.0 | 662.8 | |
| 0.00 | 1.09 | 0.00 | 0.92 | -23.46 | 137.47 | 46.92 | 236.01 | 0.8103 | 571.0 | 506.8 | |
| 0.00 | 1.09 | 0.00 | 0.90 | -22.84 | 136.99 | 46.44 | 236.46 | 0.8035 | 633.0 | 573.8 | |
| 0.00 | 2.18 | 0.00 | 1.73 | -22.79 | 134.66 | 44.11 | 235.30 | 0.7827 | -477.0 | -371.2 | |
| 0.00 | 1.18 | 0.00 | 0.93 | -22.73 | 134.27 | 43.72 | 235.16 | 0.7789 | -404.0 | -420.2 | |
| 1.91 | 2.54 | 1.48 | 1.97 | -22.29 | 133.82 | 43.27 | 235.41 | 0.7726 | -510.0 | -543.4 | |
| 0.00 | 1.36 | 0.00 | 1.05 | -21.90 | 133.49 | 42.94 | 235.68 | 0.7675 | -544.0 | -457.7 | |
| 2.27 | 4.35 | 1.75 | 3.36 | -22.83 | 133.12 | 42.57 | 234.40 | 0.7691 | -676.7 | -507.2 | |
| 2.00 | 34.38 | 1.55 | 26.70 | -23.14 | 133.11 | 42.56 | 234.04 | 0.7706 | -719.1 | -291.3 | |
| 2.09 | -19.00 | 1.62 | -19.00 | -23.45 | 133.14 | 42.59 | 233.71 | 0.7726 | -481.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.28 | -24.19 | 133.45 | 42.90 | 233.04 | 0.7793 | -349.0 | -318.3 | |
| 1.27 | -19.00 | 0.98 | -19.00 | -23.23 | 133.01 | 42.46 | 233.88 | 0.7703 | -774.6 | 999999 | |
| 1.00 | -19.00 | 0.77 | -19.00 | -23.02 | 132.88 | 42.33 | 234.05 | 0.7679 | -704.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -24.21 | 133.23 | 42.68 | 232.90 | 0.7775 | -355.0 | -315.2 | |
| 2.36 | -19.00 | 1.81 | -19.00 | -23.21 | 132.60 | 42.05 | 233.67 | 0.7664 | -699.5 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.54 | -23.48 | 132.57 | 42.02 | 233.34 | 0.7676 | -576.0 | -490.8 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -23.23 | 132.38 | 41.83 | 233.52 | 0.7645 | -659.0 | -591.3 | |
| 5.26 | 15.33 | 3.98 | 11.63 | -22.76 | 131.98 | 41.43 | 233.82 | 0.7583 | -830.8 | -625.0 | |
| 0.36 | -28.00 | 0.28 | -28.00 | -22.96 | 131.97 | 41.42 | 233.57 | 0.7593 | -806.2 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.38 | -23.74 | 131.73 | 41.18 | 232.54 | 0.7616 | -764.0 | -623.1 | |
| 0.00 | 1.54 | 0.00 | 1.14 | -21.91 | 130.84 | 40.30 | 234.12 | 0.7429 | -712.0 | -628.9 | |
| 0.00 | 1.27 | 0.00 | 0.96 | -24.03 | 131.36 | 40.81 | 231.99 | 0.7599 | -666.0 | -582.6 | |
| 0.00 | 0.73 | 0.00 | 0.55 | -24.30 | 131.38 | 40.83 | 231.69 | 0.7617 | -417.0 | -413.1 | |
| 0.00 | 1.18 | 0.00 | 0.89 | -24.04 | 131.05 | 40.51 | 231.78 | 0.7573 | -628.0 | -563.6 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -23.87 | 130.99 | 40.44 | 231.94 | 0.7556 | -644.0 | -551.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
