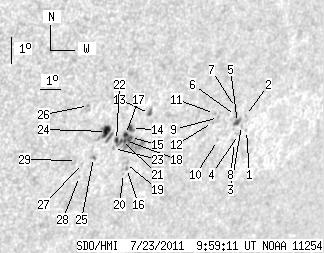

SDO HMI 2011-07-23 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.32 | 78.58 | 16.78 | 62.30 | -23.05 | 133.79 | 43.79 | 234.79 | 0.7809 | -197.0 | -193.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-23 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.71 | -23.24 | 138.80 | 48.80 | 237.14 | 0.8252 | 338.0 | 281.8 | |
| 0.00 | 0.91 | 0.00 | 0.78 | -22.71 | 138.49 | 48.49 | 237.59 | 0.8204 | 543.0 | 513.6 | |
| 0.00 | 1.00 | 0.00 | 0.86 | -23.05 | 138.45 | 48.46 | 237.20 | 0.8215 | 589.0 | 521.0 | |
| 0.00 | 1.72 | 0.00 | 1.49 | -23.36 | 138.45 | 48.46 | 236.86 | 0.8228 | 499.0 | 456.7 | |
| 3.27 | 4.17 | 2.80 | 3.58 | -22.93 | 138.20 | 48.20 | 237.21 | 0.8188 | 751.1 | 612.3 | |
| 0.00 | 1.18 | 0.00 | 1.01 | -22.68 | 137.98 | 47.98 | 237.39 | 0.8159 | 646.0 | 563.9 | |
| 0.00 | 0.91 | 0.00 | 0.77 | -22.39 | 137.85 | 47.85 | 237.65 | 0.8136 | 596.0 | 512.6 | |
| 0.00 | 0.64 | 0.00 | 0.55 | -23.63 | 138.39 | 48.39 | 236.53 | 0.8233 | 419.0 | 428.0 | |
| 0.00 | 0.82 | 0.00 | 0.68 | -22.69 | 137.15 | 47.15 | 236.98 | 0.8089 | 738.0 | 665.9 | |
| 0.00 | 1.00 | 0.00 | 0.85 | -23.50 | 137.47 | 47.48 | 236.24 | 0.8152 | 520.0 | 448.9 | |
| 0.00 | 1.00 | 0.00 | 0.83 | -22.53 | 136.88 | 46.88 | 237.03 | 0.8059 | 354.0 | 464.3 | |
| 0.00 | 1.00 | 0.00 | 0.83 | -22.84 | 136.93 | 46.93 | 236.70 | 0.8076 | 487.0 | 424.6 | |
| 2.09 | 3.08 | 1.64 | 2.42 | -22.32 | 133.74 | 43.74 | 235.63 | 0.7770 | -525.7 | -401.3 | |
| 2.99 | 35.65 | 2.33 | 27.93 | -22.79 | 133.10 | 43.10 | 234.74 | 0.7737 | -603.6 | -308.0 | |
| 1.72 | -14.00 | 1.35 | -14.00 | -23.11 | 133.18 | 43.18 | 234.43 | 0.7760 | -544.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.94 | -24.19 | 133.45 | 43.45 | 233.36 | 0.7841 | -399.0 | -354.3 | |
| 1.91 | -14.00 | 1.48 | -14.00 | -22.99 | 132.91 | 42.91 | 234.41 | 0.7729 | -727.3 | 999999 | |
| 1.09 | -14.00 | 0.85 | -14.00 | -23.20 | 132.99 | 42.99 | 234.22 | 0.7748 | -767.8 | 999999 | |
| 0.00 | 2.90 | 0.00 | 2.30 | -24.01 | 133.33 | 43.33 | 233.49 | 0.7821 | -489.0 | -313.3 | |
| 0.00 | 0.82 | 0.00 | 0.65 | -24.36 | 133.38 | 43.38 | 233.13 | 0.7844 | -299.0 | -276.7 | |
| 0.54 | -14.00 | 0.42 | -14.00 | -23.19 | 132.80 | 42.80 | 234.13 | 0.7731 | -818.3 | 999999 | |
| 1.72 | -14.00 | 1.33 | -14.00 | -23.17 | 132.57 | 42.57 | 234.01 | 0.7709 | -685.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -23.44 | 132.54 | 42.55 | 233.68 | 0.7721 | -646.0 | -576.8 | |
| 5.99 | 13.88 | 4.58 | 10.62 | -22.83 | 131.99 | 41.99 | 234.07 | 0.7638 | -840.5 | -603.6 | |
| 0.00 | 1.81 | 0.00 | 1.39 | -23.70 | 131.75 | 41.75 | 232.92 | 0.7665 | -682.0 | -569.3 | |
| 0.00 | 1.18 | 0.00 | 0.88 | -21.87 | 130.85 | 40.85 | 234.50 | 0.7479 | -701.0 | -606.7 | |
| 0.00 | 0.64 | 0.00 | 0.49 | -23.89 | 131.33 | 41.33 | 232.47 | 0.7637 | -543.0 | -496.1 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -24.34 | 131.37 | 41.37 | 231.98 | 0.7667 | -507.0 | -395.0 | |
| 0.00 | 0.45 | 0.00 | 0.34 | -23.76 | 131.01 | 41.02 | 232.41 | 0.7602 | -354.0 | -350.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
