SDO HMI 2011-07-23 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.31 | 53.79 | 13.40 | 28.63 | 24.07 | 79.58 | -9.87 | 25.44 | 0.3643 | -818.7 | -556.2 | |
|
previous
or next observation for the same group /

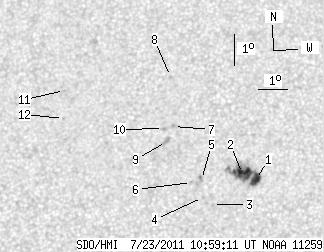

back to the solar disc SDO HMI 2011-07-23 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.98 | 38.55 | 4.75 | 20.43 | 23.68 | 80.68 | -8.77 | 23.56 | 0.3508 | -1058.2 | -595.8 | |
| 16.33 | -1.00 | 8.65 | -1.00 | 23.87 | 80.23 | -9.22 | 24.37 | 0.3566 | -1076.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 22.86 | 79.29 | -10.16 | 27.89 | 0.3488 | -769.0 | -623.8 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 23.08 | 78.94 | -10.51 | 28.37 | 0.3546 | -740.0 | -490.3 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 23.66 | 78.86 | -10.59 | 27.73 | 0.3633 | -907.0 | -758.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 23.55 | 78.53 | -10.92 | 28.59 | 0.3644 | -704.0 | -612.1 | |
| 0.00 | 1.72 | 0.00 | 0.93 | 25.35 | 77.75 | -11.70 | 27.74 | 0.3953 | -809.0 | -704.1 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 26.98 | 77.48 | -11.97 | 26.24 | 0.4198 | -651.0 | -495.7 | |
| 0.00 | 4.63 | 0.00 | 2.49 | 24.86 | 77.56 | -11.89 | 28.77 | 0.3900 | -959.0 | -705.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 25.28 | 77.41 | -12.03 | 28.49 | 0.3969 | -830.0 | -632.6 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 26.45 | 73.82 | -15.63 | 33.27 | 0.4415 | 795.0 | 568.1 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 25.54 | 73.91 | -15.54 | 34.42 | 0.4293 | 751.0 | 585.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
