SDO HMI 2011-07-23 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.31 | 55.84 | 8.55 | 29.50 | 24.31 | 78.81 | -6.21 | 16.18 | 0.3473 | -412.8 | -277.2 | |
|
previous
or next observation for the same group /

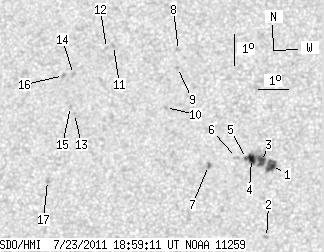

back to the solar disc SDO HMI 2011-07-23 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.62 | 34.26 | 2.94 | 17.97 | 23.61 | 80.85 | -4.17 | 11.83 | 0.3263 | -1035.8 | -654.9 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 21.31 | 80.76 | -4.26 | 13.91 | 0.2894 | -808.0 | -648.7 | |
| 6.07 | -1.00 | 3.19 | -1.00 | 23.73 | 80.52 | -4.51 | 12.67 | 0.3295 | -1036.6 | 999999 | |
| 4.35 | -1.00 | 2.28 | -1.00 | 23.83 | 80.18 | -4.84 | 13.50 | 0.3322 | -1064.6 | 999999 | |
| 0.27 | -1.00 | 0.14 | -1.00 | 23.82 | 80.01 | -5.01 | 13.95 | 0.3329 | -865.3 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.10 | 23.85 | 79.68 | -5.35 | 14.81 | 0.3347 | -706.0 | -529.3 | |
| 0.00 | 2.18 | 0.00 | 1.14 | 23.59 | 78.75 | -6.27 | 17.47 | 0.3348 | -1037.0 | -885.6 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 27.32 | 77.52 | -7.50 | 17.02 | 0.3981 | -684.0 | -537.0 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 26.76 | 77.52 | -7.50 | 17.49 | 0.3896 | -846.0 | -592.1 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 25.45 | 77.20 | -7.83 | 19.42 | 0.3714 | -736.0 | -581.6 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 27.45 | 75.25 | -9.77 | 21.53 | 0.4121 | 719.0 | 589.3 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 27.35 | 75.02 | -10.00 | 22.09 | 0.4120 | 682.0 | 520.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 25.21 | 74.11 | -10.91 | 26.37 | 0.3874 | 752.0 | 530.0 | |
| 0.00 | 1.90 | 0.00 | 1.03 | 26.48 | 73.95 | -11.07 | 25.13 | 0.4063 | 757.0 | 635.1 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 25.44 | 73.95 | -11.07 | 26.40 | 0.3917 | 760.0 | 480.1 | |
| 0.00 | 2.27 | 0.00 | 1.23 | 26.44 | 73.61 | -11.41 | 25.84 | 0.4082 | 798.0 | 621.2 | |
| 0.00 | 2.27 | 0.00 | 1.20 | 23.04 | 73.38 | -11.64 | 30.92 | 0.3629 | 806.0 | 653.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
