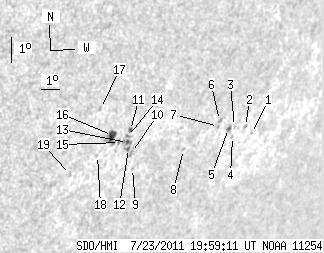

SDO HMI 2011-07-23 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.05 | 43.52 | 10.46 | 38.31 | -23.05 | 133.76 | 49.30 | 237.52 | 0.8281 | -217.0 | -186.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-23 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.83 | -23.31 | 139.62 | 55.16 | 239.69 | 0.8750 | 477.0 | 407.2 | |
| 0.00 | 1.27 | 0.00 | 1.27 | -23.03 | 139.11 | 54.64 | 239.80 | 0.8704 | 563.0 | 461.3 | |
| 0.00 | 1.00 | 0.00 | 0.98 | -22.98 | 138.45 | 53.98 | 239.60 | 0.8653 | 373.0 | 423.4 | |
| 0.00 | 0.73 | 0.00 | 0.72 | -23.33 | 138.54 | 54.07 | 239.26 | 0.8671 | 459.0 | 404.6 | |
| 1.45 | 2.08 | 1.41 | 2.03 | -23.03 | 138.14 | 53.67 | 239.43 | 0.8631 | 701.9 | 621.1 | |
| 0.00 | 1.81 | 0.00 | 1.73 | -22.70 | 137.45 | 52.98 | 239.51 | 0.8568 | 663.0 | 572.2 | |
| 0.00 | 0.91 | 0.00 | 0.87 | -22.91 | 137.51 | 53.04 | 239.31 | 0.8580 | 659.0 | 627.8 | |
| 0.00 | 1.36 | 0.00 | 1.26 | -23.58 | 135.98 | 51.51 | 237.95 | 0.8484 | 493.0 | 408.1 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -24.06 | 133.57 | 49.10 | 236.37 | 0.8310 | -302.0 | -288.0 | |
| 0.00 | 2.63 | 0.00 | 2.30 | -23.49 | 133.22 | 48.75 | 236.84 | 0.8259 | -343.0 | -265.2 | |
| 1.45 | 1.99 | 1.25 | 1.71 | -22.71 | 132.79 | 48.32 | 237.51 | 0.8191 | -506.4 | -495.8 | |
| 1.45 | 7.98 | 1.26 | 6.90 | -23.33 | 132.99 | 48.53 | 236.90 | 0.8234 | -501.3 | -472.9 | |
| 1.45 | -12.00 | 1.25 | -12.00 | -23.12 | 132.84 | 48.37 | 237.07 | 0.8212 | -694.9 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.56 | -22.91 | 132.74 | 48.27 | 237.26 | 0.8195 | -729.0 | -551.5 | |
| 0.00 | 1.72 | 0.00 | 1.47 | -23.09 | 132.43 | 47.96 | 236.91 | 0.8176 | -660.0 | -541.2 | |
| 6.25 | 12.60 | 5.29 | 10.65 | -22.82 | 131.95 | 47.49 | 236.98 | 0.8124 | -747.1 | -540.7 | |
| 0.00 | 1.63 | 0.00 | 1.34 | -21.83 | 130.93 | 46.47 | 237.60 | 0.7993 | -634.0 | -482.3 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -23.47 | 131.52 | 47.05 | 236.04 | 0.8117 | -630.0 | -494.5 | |
| 0.00 | 1.36 | 0.00 | 1.13 | -24.06 | 130.48 | 46.02 | 234.87 | 0.8055 | -600.0 | -476.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
