SDO HMI 2011-07-23 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.67 | 49.14 | 9.77 | 25.86 | 24.09 | 78.95 | -4.40 | 11.75 | 0.3364 | -392.8 | -264.0 | |
|
previous
or next observation for the same group /

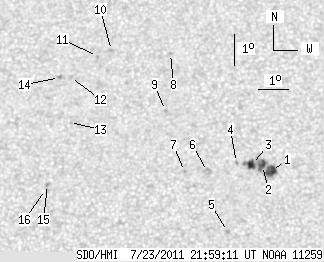

back to the solar disc SDO HMI 2011-07-23 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.16 | 29.01 | 4.79 | 15.18 | 23.57 | 80.89 | -2.47 | 7.10 | 0.3207 | -990.6 | -683.9 | |
| 4.89 | -1.00 | 2.56 | -1.00 | 23.73 | 80.59 | -2.77 | 7.89 | 0.3240 | -989.8 | 999999 | |
| 4.62 | -1.00 | 2.42 | -1.00 | 23.76 | 80.22 | -3.14 | 8.90 | 0.3254 | -1044.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 23.82 | 79.72 | -3.64 | 10.25 | 0.3278 | -645.0 | -497.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 21.61 | 79.48 | -3.88 | 12.46 | 0.2926 | -842.0 | -757.7 | |
| 0.00 | 5.17 | 0.00 | 2.71 | 23.53 | 78.76 | -4.60 | 13.08 | 0.3262 | -495.0 | -698.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 23.52 | 77.99 | -5.36 | 15.16 | 0.3292 | -673.0 | -496.1 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 27.35 | 77.34 | -6.02 | 13.81 | 0.3920 | -655.0 | -562.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 25.48 | 77.27 | -6.09 | 15.36 | 0.3633 | -796.0 | -620.6 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 27.43 | 75.29 | -8.07 | 18.11 | 0.4023 | 804.0 | 627.3 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 27.22 | 74.82 | -8.53 | 19.27 | 0.4016 | 792.0 | 691.4 | |
| 0.00 | 1.99 | 0.00 | 1.08 | 26.52 | 73.95 | -9.41 | 21.77 | 0.3962 | 855.0 | 680.3 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 25.06 | 74.03 | -9.33 | 23.21 | 0.3742 | 285.0 | 367.0 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 26.52 | 73.57 | -9.79 | 22.55 | 0.3984 | 823.0 | 639.9 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 23.05 | 73.44 | -9.92 | 27.12 | 0.3492 | 890.0 | 750.5 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 22.89 | 73.38 | -9.98 | 27.48 | 0.3473 | 518.0 | 627.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
