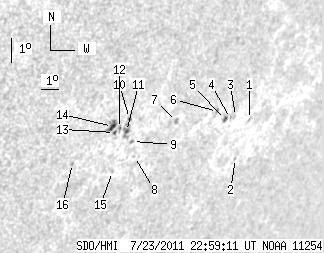

SDO HMI 2011-07-23 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.97 | 36.46 | 8.18 | 33.74 | -23.18 | 134.26 | 51.45 | 238.30 | 0.8459 | -106.6 | -164.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-23 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.55 | -23.23 | 139.71 | 56.91 | 240.39 | 0.8874 | 412.0 | 292.2 | |
| 0.00 | 1.00 | 0.00 | 1.08 | -24.57 | 139.77 | 56.97 | 238.99 | 0.8914 | 293.0 | 203.4 | |
| 0.00 | 1.18 | 0.00 | 1.22 | -23.05 | 138.75 | 55.95 | 240.24 | 0.8801 | 492.0 | 441.0 | |
| 0.00 | 1.18 | 0.00 | 1.21 | -23.10 | 138.49 | 55.68 | 240.10 | 0.8783 | 475.0 | 457.0 | |
| 1.81 | 2.54 | 1.85 | 2.59 | -23.11 | 138.20 | 55.39 | 239.98 | 0.8762 | 671.7 | 589.6 | |
| 0.00 | 1.45 | 0.00 | 1.45 | -22.79 | 137.54 | 54.73 | 240.08 | 0.8704 | 631.0 | 627.9 | |
| 0.00 | 2.18 | 0.00 | 2.06 | -22.96 | 135.34 | 52.53 | 239.04 | 0.8543 | 460.0 | 224.5 | |
| 0.00 | 0.82 | 0.00 | 0.75 | -24.04 | 133.67 | 50.86 | 237.17 | 0.8451 | -264.0 | -208.0 | |
| 0.00 | 1.45 | 0.00 | 1.32 | -23.49 | 133.27 | 50.46 | 237.59 | 0.8399 | -281.0 | -248.9 | |
| 1.09 | 1.45 | 0.97 | 1.29 | -22.67 | 132.69 | 49.88 | 238.25 | 0.8320 | -478.9 | -344.0 | |
| 1.54 | 7.80 | 1.38 | 6.96 | -23.11 | 132.76 | 49.95 | 237.78 | 0.8343 | -615.5 | -498.5 | |
| 0.00 | 2.18 | 0.00 | 1.92 | -22.98 | 132.33 | 49.53 | 237.74 | 0.8303 | -608.0 | -518.1 | |
| 1.18 | 1.63 | 1.04 | 1.44 | -23.10 | 132.14 | 49.33 | 237.52 | 0.8292 | -495.5 | -489.4 | |
| 3.35 | 7.61 | 2.94 | 6.66 | -22.88 | 131.93 | 49.12 | 237.66 | 0.8266 | -710.9 | -615.1 | |
| 0.00 | 1.27 | 0.00 | 1.15 | -24.49 | 132.76 | 49.95 | 236.28 | 0.8397 | -462.0 | -389.5 | |
| 0.00 | 1.27 | 0.00 | 1.09 | -24.05 | 130.49 | 47.69 | 235.70 | 0.8196 | -516.0 | -416.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
