SDO HMI 2011-07-23 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.45 | 14.31 | 0.86 | 8.73 | 7.13 | 47.17 | -35.63 | 84.74 | 0.5836 | -279.5 | -199.2 | |
|
previous
or next observation for the same group /

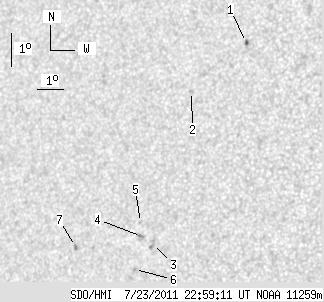

back to the solar disc SDO HMI 2011-07-23 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.45 | 1.81 | 0.86 | 1.07 | 12.05 | 50.12 | -32.68 | 75.68 | 0.5471 | -774.7 | -605.8 | |
| 0.00 | 1.90 | 0.00 | 1.15 | 10.46 | 48.28 | -34.52 | 78.96 | 0.5700 | 768.0 | 483.8 | |
| 0.00 | 3.44 | 0.00 | 2.09 | 5.73 | 47.28 | -35.52 | 87.29 | 0.5809 | -819.0 | -585.3 | |
| 0.00 | 2.45 | 0.00 | 1.50 | 5.95 | 46.85 | -35.95 | 86.90 | 0.5870 | -599.0 | -432.0 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 6.38 | 46.78 | -36.02 | 86.17 | 0.5880 | -679.0 | -522.0 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 4.94 | 46.66 | -36.15 | 88.63 | 0.5900 | -649.0 | -486.1 | |
| 0.00 | 1.90 | 0.00 | 1.20 | 5.51 | 44.34 | -38.46 | 87.56 | 0.6219 | 727.0 | 622.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
