SDO HMI 2011-07-23 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.44 | 32.99 | 6.73 | 30.96 | -23.15 | 134.30 | 52.05 | 238.59 | 0.8506 | -245.9 | -63.7 | |
|
previous
or next observation for the same group /

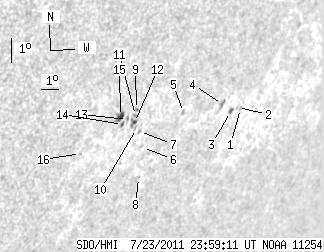

back to the solar disc SDO HMI 2011-07-23 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 1.33 | -23.09 | 138.70 | 56.45 | 240.38 | 0.8838 | 534.0 | 484.6 | |
| 0.00 | 1.36 | 0.00 | 1.42 | -23.04 | 138.49 | 56.23 | 240.36 | 0.8821 | 442.0 | 430.1 | |
| 0.82 | 2.45 | 0.84 | 2.53 | -23.14 | 138.14 | 55.88 | 240.12 | 0.8799 | 703.0 | 605.7 | |
| 0.00 | 3.90 | 0.00 | 3.95 | -22.86 | 137.49 | 55.23 | 240.19 | 0.8744 | 669.0 | 591.3 | |
| 0.00 | 1.72 | 0.00 | 1.65 | -22.97 | 135.34 | 53.08 | 239.25 | 0.8585 | 391.0 | 198.1 | |
| 0.00 | 0.54 | 0.00 | 0.51 | -24.04 | 133.71 | 51.45 | 237.42 | 0.8497 | -289.0 | -251.3 | |
| 0.00 | 1.45 | 0.00 | 1.33 | -23.46 | 133.22 | 50.97 | 237.85 | 0.8438 | -356.0 | -260.3 | |
| 0.00 | 1.72 | 0.00 | 1.64 | -25.11 | 134.11 | 51.86 | 236.44 | 0.8567 | -351.0 | -314.9 | |
| 0.00 | 1.36 | 0.00 | 1.22 | -22.67 | 132.65 | 50.40 | 238.47 | 0.8362 | -533.0 | -453.5 | |
| 0.00 | 0.45 | 0.00 | 0.41 | -23.34 | 133.00 | 50.75 | 237.88 | 0.8416 | -407.0 | -402.4 | |
| 0.00 | 1.63 | 0.00 | 1.47 | -22.87 | 132.71 | 50.45 | 238.26 | 0.8375 | -621.0 | -486.4 | |
| 1.27 | 4.53 | 1.15 | 4.10 | -23.12 | 132.78 | 50.53 | 238.03 | 0.8390 | -496.4 | -506.7 | |
| 0.00 | 1.09 | 0.00 | 0.97 | -22.98 | 132.35 | 50.09 | 237.98 | 0.8350 | -646.0 | -508.2 | |
| 1.00 | 1.63 | 0.89 | 1.46 | -23.14 | 132.17 | 49.91 | 237.73 | 0.8341 | -540.2 | -499.0 | |
| 4.35 | 7.07 | 3.85 | 6.26 | -22.85 | 131.92 | 49.66 | 237.94 | 0.8310 | -697.6 | -618.8 | |
| 0.00 | 0.82 | 0.00 | 0.71 | -24.02 | 130.47 | 48.22 | 235.99 | 0.8238 | -292.0 | -426.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
