SDO HMI 2011-07-24 00:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.50 | 42.35 | 9.67 | 22.25 | 24.06 | 78.44 | -3.26 | 8.68 | 0.3332 | -400.5 | -53.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-24 00:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

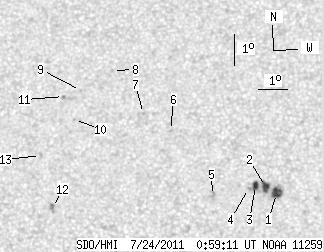

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.25 | 10.79 | 4.31 | 5.64 | 23.50 | 80.92 | -0.78 | 2.26 | 0.3170 | -990.3 | -417.6 | |
| 6.35 | 7.34 | 3.32 | 3.84 | 23.73 | 80.56 | -1.15 | 3.28 | 0.3210 | -962.0 | -672.3 | |
| 3.90 | 5.71 | 2.04 | 2.99 | 23.76 | 80.22 | -1.48 | 4.23 | 0.3219 | -988.1 | -839.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 23.66 | 79.99 | -1.71 | 4.91 | 0.3206 | -750.0 | -679.4 | |
| 0.00 | 4.08 | 0.00 | 2.13 | 23.43 | 78.80 | -2.90 | 8.41 | 0.3191 | -801.0 | -725.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 25.52 | 77.33 | -4.37 | 11.15 | 0.3572 | -819.0 | -658.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 26.07 | 76.39 | -5.31 | 13.08 | 0.3690 | -758.0 | -501.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 27.47 | 75.26 | -6.45 | 14.66 | 0.3953 | 722.0 | 527.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 26.80 | 74.19 | -7.51 | 17.49 | 0.3898 | 799.0 | 616.8 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 25.85 | 74.05 | -7.65 | 18.66 | 0.3760 | 810.0 | 636.0 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 26.60 | 73.62 | -8.08 | 18.90 | 0.3896 | 772.0 | 654.7 | |
| 0.00 | 4.35 | 0.00 | 2.29 | 23.00 | 73.49 | -8.21 | 23.12 | 0.3363 | 934.0 | 741.1 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 24.67 | 72.98 | -8.73 | 22.33 | 0.3644 | 690.0 | 605.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
