SDO HMI 2011-07-24 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.53 | 0.00 | 4.47 | 5.83 | 46.57 | -33.49 | 87.18 | 0.5515 | -392.0 | -325.6 | |
|
previous
or next observation for the same group /

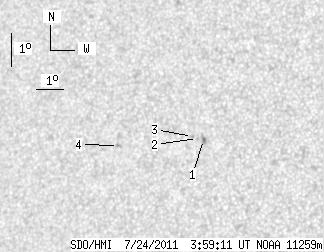

back to the solar disc SDO HMI 2011-07-24 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.63 | 0.00 | 2.13 | 5.90 | 47.47 | -32.59 | 87.07 | 0.5385 | -944.0 | -763.4 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 5.92 | 47.25 | -32.81 | 87.03 | 0.5417 | -782.0 | -609.0 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 5.98 | 47.06 | -32.99 | 86.93 | 0.5445 | -649.0 | -442.8 | |
| 0.00 | 1.90 | 0.00 | 1.16 | 5.56 | 44.34 | -35.72 | 87.61 | 0.5837 | 807.0 | 666.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
