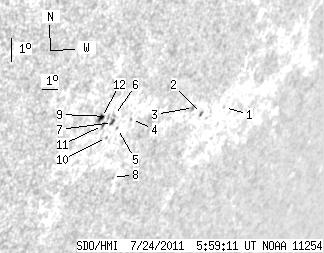

SDO HMI 2011-07-24 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.80 | 18.95 | 3.68 | 19.12 | -23.10 | 133.88 | 54.92 | 239.76 | 0.8723 | -216.4 | -129.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-24 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.76 | -23.14 | 139.62 | 60.66 | 241.69 | 0.9122 | 480.0 | 390.6 | |
| 0.00 | 1.81 | 0.00 | 2.07 | -23.23 | 138.15 | 59.19 | 241.14 | 0.9030 | 700.0 | 539.2 | |
| 0.00 | 1.63 | 0.00 | 1.82 | -22.97 | 137.45 | 58.49 | 241.19 | 0.8977 | 618.0 | 593.2 | |
| 0.00 | 1.09 | 0.00 | 1.09 | -23.09 | 133.76 | 54.80 | 239.77 | 0.8720 | -281.0 | -244.8 | |
| 0.00 | 0.91 | 0.00 | 0.90 | -23.34 | 133.12 | 54.16 | 239.25 | 0.8680 | -281.0 | -247.6 | |
| 0.00 | 1.09 | 0.00 | 1.06 | -22.87 | 132.66 | 53.70 | 239.59 | 0.8631 | -500.0 | -324.2 | |
| 1.90 | 2.72 | 1.86 | 2.66 | -23.11 | 132.69 | 53.73 | 239.34 | 0.8641 | -451.3 | -506.7 | |
| 0.00 | 0.36 | 0.00 | 0.38 | -25.10 | 133.94 | 54.98 | 237.69 | 0.8794 | -287.0 | -342.8 | |
| 0.00 | 2.00 | 0.00 | 1.93 | -22.88 | 132.33 | 53.37 | 239.45 | 0.8606 | -562.0 | -466.0 | |
| 0.00 | 0.91 | 0.00 | 0.89 | -23.62 | 132.66 | 53.70 | 238.77 | 0.8655 | -368.0 | -330.9 | |
| 0.00 | 1.36 | 0.00 | 1.31 | -23.17 | 132.17 | 53.21 | 239.07 | 0.8603 | -352.0 | -402.6 | |
| 1.90 | 4.44 | 1.82 | 4.25 | -22.88 | 131.95 | 52.99 | 239.29 | 0.8577 | -707.9 | -576.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
