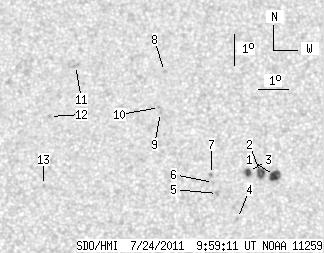

SDO HMI 2011-07-24 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.06 | 34.83 | 8.93 | 18.27 | 24.02 | 79.32 | 2.55 | 352.57 | 0.3296 | -615.9 | -367.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-24 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.44 | 9.61 | 3.89 | 5.03 | 23.52 | 81.10 | 4.34 | 347.61 | 0.3243 | -936.1 | -668.5 | |
| 6.26 | 6.98 | 3.28 | 3.66 | 23.62 | 80.64 | 3.87 | 348.96 | 0.3244 | -898.9 | -859.9 | |
| 3.36 | 4.35 | 1.76 | 2.28 | 23.65 | 80.24 | 3.47 | 350.09 | 0.3238 | -958.4 | -931.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 22.15 | 79.84 | 3.07 | 350.37 | 0.2980 | -843.0 | -674.1 | |
| 0.00 | 2.27 | 0.00 | 1.18 | 22.95 | 79.20 | 2.43 | 352.73 | 0.3097 | -954.0 | -734.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 23.30 | 79.07 | 2.30 | 353.25 | 0.3152 | -701.0 | -593.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 23.56 | 79.01 | 2.24 | 353.53 | 0.3194 | -941.0 | -799.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 26.91 | 77.47 | 0.70 | 358.32 | 0.3725 | -717.0 | -566.4 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 25.57 | 77.32 | 0.55 | 358.57 | 0.3505 | -813.0 | -583.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 25.73 | 77.29 | 0.52 | 358.67 | 0.3532 | -767.0 | -605.3 | |
| 0.00 | 2.27 | 0.00 | 1.21 | 27.10 | 74.42 | -2.35 | 5.57 | 0.3773 | 779.0 | 632.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 25.43 | 73.58 | -3.19 | 8.25 | 0.3519 | 826.0 | 637.2 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 23.20 | 73.43 | -3.34 | 9.78 | 0.3160 | 749.0 | 643.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
