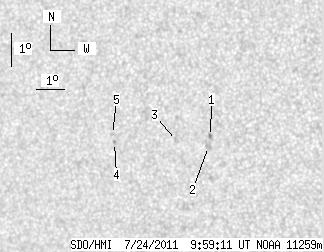

SDO HMI 2011-07-24 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.98 | 0.00 | 5.72 | 5.84 | 46.55 | -30.22 | 87.24 | 0.5031 | 74.6 | -123.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-24 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.09 | 0.00 | 1.18 | 6.01 | 47.81 | -28.96 | 86.88 | 0.4841 | -946.0 | -831.2 | |
| 0.00 | 3.17 | 0.00 | 1.80 | 5.71 | 47.76 | -29.01 | 87.51 | 0.4849 | -692.0 | -631.6 | |
| 0.00 | 1.81 | 0.00 | 1.04 | 5.84 | 46.62 | -30.15 | 87.23 | 0.5022 | 628.0 | 464.2 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 5.68 | 44.41 | -32.36 | 87.52 | 0.5352 | 767.0 | 674.9 | |
| 0.00 | 2.00 | 0.00 | 1.17 | 5.92 | 44.32 | -32.45 | 87.07 | 0.5364 | 616.0 | 488.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
