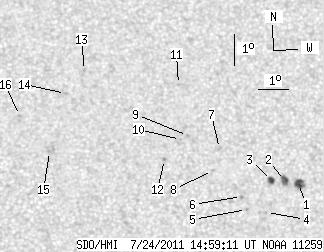

SDO HMI 2011-07-24 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.50 | 32.83 | 7.62 | 17.27 | 24.10 | 78.96 | 4.95 | 346.18 | 0.3389 | -443.7 | -261.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-24 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.16 | 7.80 | 3.24 | 4.10 | 23.49 | 81.15 | 7.14 | 340.13 | 0.3367 | -879.6 | -696.2 | |
| 4.71 | 6.16 | 2.48 | 3.24 | 23.59 | 80.69 | 6.68 | 341.42 | 0.3358 | -874.6 | -816.1 | |
| 3.63 | 4.53 | 1.90 | 2.38 | 23.60 | 80.25 | 6.24 | 342.55 | 0.3336 | -928.7 | -612.1 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 22.58 | 80.04 | 6.03 | 342.08 | 0.3166 | -807.0 | -603.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 22.68 | 79.38 | 5.37 | 344.02 | 0.3150 | -810.0 | -662.6 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 23.09 | 79.23 | 5.22 | 344.82 | 0.3209 | -920.0 | -741.7 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 24.64 | 78.55 | 4.54 | 347.83 | 0.3431 | -688.0 | -513.9 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 23.94 | 78.30 | 4.28 | 348.04 | 0.3308 | -585.0 | -470.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 25.07 | 77.49 | 3.48 | 350.84 | 0.3467 | -764.0 | -642.5 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 24.94 | 77.25 | 3.24 | 351.39 | 0.3440 | -937.0 | -831.1 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 26.73 | 77.23 | 3.22 | 352.23 | 0.3729 | -816.0 | -633.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 24.30 | 76.70 | 2.69 | 352.57 | 0.3323 | 771.0 | 703.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 27.20 | 74.03 | 0.02 | 359.96 | 0.3770 | 681.0 | 557.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 26.45 | 73.38 | -0.63 | 1.55 | 0.3648 | 826.0 | 701.8 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 24.56 | 72.86 | -1.16 | 3.16 | 0.3343 | 931.0 | 785.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 25.72 | 71.83 | -2.18 | 5.57 | 0.3546 | 752.0 | 537.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
