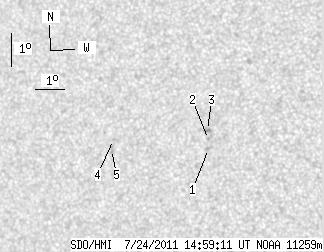

SDO HMI 2011-07-24 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.60 | 0.00 | 6.47 | 5.67 | 46.69 | -27.33 | 87.60 | 0.4589 | -201.8 | -173.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-24 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.99 | 0.00 | 1.65 | 5.53 | 48.03 | -25.99 | 87.95 | 0.4382 | -731.0 | -582.1 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 5.80 | 48.01 | -26.00 | 87.32 | 0.4384 | -773.0 | -673.8 | |
| 0.00 | 3.26 | 0.00 | 1.80 | 6.08 | 47.97 | -26.05 | 86.70 | 0.4392 | -944.0 | -751.1 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 5.67 | 44.73 | -29.28 | 87.60 | 0.4890 | 721.0 | 582.1 | |
| 0.00 | 3.35 | 0.00 | 1.90 | 5.36 | 44.68 | -29.33 | 88.23 | 0.4899 | 718.0 | 579.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
