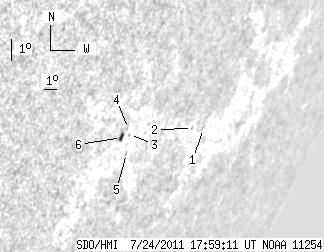

SDO HMI 2011-07-24 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.72 | 8.89 | 3.16 | 10.85 | -23.23 | 133.53 | 61.18 | 241.72 | 0.9152 | -204.9 | -76.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-24 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.93 | -23.37 | 138.23 | 65.88 | 242.90 | 0.9426 | 551.0 | 411.0 | |
| 0.00 | 1.18 | 0.00 | 1.66 | -23.28 | 137.27 | 64.92 | 242.74 | 0.9374 | 454.0 | 402.6 | |
| 0.00 | 0.82 | 0.00 | 0.96 | -23.09 | 132.54 | 60.19 | 241.59 | 0.9092 | -359.0 | -280.8 | |
| 0.00 | 0.82 | 0.00 | 0.95 | -22.87 | 132.30 | 59.96 | 241.75 | 0.9072 | -432.0 | -399.6 | |
| 0.00 | 1.00 | 0.00 | 1.20 | -23.77 | 132.85 | 60.50 | 240.98 | 0.9126 | -196.0 | -174.9 | |
| 2.72 | 4.44 | 3.16 | 5.15 | -23.15 | 132.05 | 59.70 | 241.37 | 0.9062 | -534.7 | -389.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
