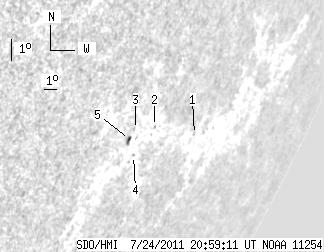

SDO HMI 2011-07-24 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.72 | 6.89 | 2.12 | 8.88 | -23.22 | 133.38 | 62.69 | 242.17 | 0.9244 | -249.4 | -163.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-24 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 1.64 | -23.42 | 137.29 | 66.60 | 243.02 | 0.9464 | 490.0 | 388.2 | |
| 0.00 | 0.91 | 0.00 | 1.18 | -22.83 | 133.61 | 62.93 | 242.66 | 0.9255 | -301.0 | -265.6 | |
| 0.00 | 0.63 | 0.00 | 0.78 | -22.82 | 132.24 | 61.56 | 242.28 | 0.9172 | -372.0 | -309.6 | |
| 0.00 | 1.09 | 0.00 | 1.38 | -23.76 | 132.86 | 62.18 | 241.48 | 0.9228 | -280.0 | -238.8 | |
| 1.72 | 3.17 | 2.12 | 3.90 | -23.15 | 132.08 | 61.39 | 241.89 | 0.9169 | -501.6 | -484.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
