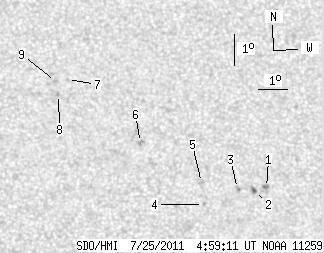

SDO HMI 2011-07-25 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.45 | 19.14 | 0.78 | 10.28 | 24.50 | 78.62 | 12.34 | 329.63 | 0.3894 | -318.0 | -411.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-25 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.72 | 0.00 | 2.01 | 23.57 | 81.25 | 14.97 | 323.29 | 0.3978 | -955.0 | -730.7 | |
| 1.45 | 2.99 | 0.78 | 1.61 | 23.48 | 80.83 | 14.55 | 323.90 | 0.3927 | -903.0 | -666.5 | |
| 0.00 | 2.09 | 0.00 | 1.12 | 23.56 | 80.25 | 13.97 | 325.08 | 0.3883 | -844.0 | -690.6 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 23.07 | 79.04 | 12.76 | 326.62 | 0.3710 | -774.0 | -660.4 | |
| 0.00 | 2.27 | 0.00 | 1.21 | 23.77 | 79.04 | 12.76 | 327.73 | 0.3803 | -948.0 | -706.4 | |
| 0.00 | 3.17 | 0.00 | 1.70 | 25.10 | 77.08 | 10.81 | 333.56 | 0.3830 | -891.0 | -748.7 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 27.19 | 74.75 | 8.47 | 340.74 | 0.3989 | 803.0 | 661.6 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 26.70 | 74.40 | 8.12 | 341.02 | 0.3897 | 811.0 | 709.1 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 27.13 | 74.33 | 8.05 | 341.57 | 0.3958 | 710.0 | 585.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
