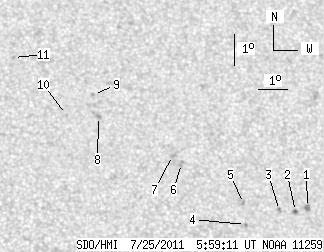

SDO HMI 2011-07-25 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 19.87 | 0.83 | 10.69 | 24.78 | 78.02 | 12.29 | 330.12 | 0.3934 | -233.1 | -366.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-25 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.54 | 0.00 | 1.91 | 23.59 | 81.26 | 15.52 | 322.37 | 0.4034 | -931.0 | -737.8 | |
| 1.54 | 2.36 | 0.83 | 1.27 | 23.47 | 80.83 | 15.10 | 322.91 | 0.3978 | -888.9 | -759.3 | |
| 0.00 | 1.90 | 0.00 | 1.03 | 23.52 | 80.28 | 14.55 | 323.95 | 0.3931 | -852.0 | -730.0 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 23.09 | 79.08 | 13.34 | 325.51 | 0.3766 | -812.0 | -666.9 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 23.77 | 79.08 | 13.35 | 326.59 | 0.3853 | -855.0 | -683.1 | |
| 0.00 | 2.81 | 0.00 | 1.51 | 25.10 | 77.09 | 11.35 | 332.43 | 0.3869 | -947.0 | -756.3 | |
| 0.00 | 1.90 | 0.00 | 1.02 | 25.36 | 76.80 | 11.07 | 333.35 | 0.3885 | -715.0 | -625.4 | |
| 0.00 | 2.09 | 0.00 | 1.12 | 26.67 | 74.37 | 8.64 | 339.89 | 0.3919 | 919.0 | 686.0 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 27.39 | 74.25 | 8.52 | 340.82 | 0.4021 | 687.0 | 585.7 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 26.75 | 73.27 | 7.54 | 342.32 | 0.3874 | 849.0 | 622.5 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 28.65 | 71.55 | 5.82 | 347.39 | 0.4094 | 870.0 | 710.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
