SDO HMI 2011-07-25 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.14 | 0.00 | 11.95 | 24.87 | 77.62 | 12.98 | 329.00 | 0.3997 | -223.1 | -268.3 | |
|
previous
or next observation for the same group /

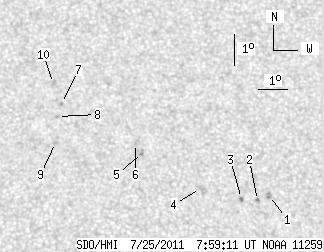

back to the solar disc SDO HMI 2011-07-25 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.27 | 0.00 | 1.78 | 23.60 | 81.27 | 16.63 | 320.55 | 0.4145 | -930.0 | -756.0 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 23.45 | 80.83 | 16.20 | 321.00 | 0.4083 | -913.0 | -806.6 | |
| 0.00 | 1.72 | 0.00 | 0.93 | 23.53 | 80.29 | 15.65 | 322.04 | 0.4039 | -883.0 | -740.9 | |
| 0.00 | 4.90 | 0.00 | 2.64 | 23.88 | 78.92 | 14.28 | 325.02 | 0.3951 | -263.0 | -542.7 | |
| 0.00 | 2.09 | 0.00 | 1.12 | 25.08 | 77.05 | 12.42 | 330.31 | 0.3948 | -923.0 | -764.0 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 25.38 | 76.84 | 12.21 | 331.12 | 0.3972 | -844.0 | -680.2 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 26.72 | 74.42 | 9.78 | 337.57 | 0.3993 | 808.0 | 664.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 26.30 | 74.24 | 9.60 | 337.48 | 0.3921 | 846.0 | 647.7 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 25.46 | 74.10 | 9.47 | 336.82 | 0.3789 | 766.0 | 567.3 | |
| 0.00 | 2.63 | 0.00 | 1.43 | 27.38 | 74.20 | 9.56 | 338.70 | 0.4077 | 105.0 | 306.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
