SDO HMI 2011-07-25 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 16.42 | 0.74 | 8.94 | 24.60 | 77.58 | 15.14 | 325.07 | 0.4165 | 185.1 | -7.2 | |
|
previous
or next observation for the same group /

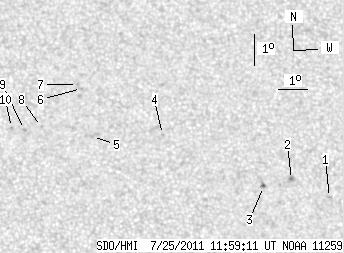

back to the solar disc SDO HMI 2011-07-25 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.05 | 23.02 | 82.55 | 20.11 | 314.47 | 0.4453 | -687.0 | -555.6 | |
| 0.00 | 3.63 | 0.00 | 2.00 | 23.64 | 81.31 | 18.87 | 317.22 | 0.4381 | -898.0 | -572.8 | |
| 1.36 | 2.54 | 0.74 | 1.39 | 23.44 | 80.30 | 17.86 | 318.36 | 0.4253 | -784.9 | -583.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 25.20 | 77.02 | 14.58 | 326.51 | 0.4144 | -636.0 | -505.6 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 25.18 | 74.59 | 12.15 | 330.95 | 0.3940 | 909.0 | 628.1 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 26.75 | 74.37 | 11.93 | 333.39 | 0.4140 | 750.0 | 530.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 26.88 | 74.25 | 11.81 | 333.78 | 0.4149 | 724.0 | 629.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 25.54 | 72.87 | 10.43 | 334.87 | 0.3864 | 705.0 | 609.1 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 25.45 | 72.28 | 9.84 | 336.00 | 0.3812 | 735.0 | 596.0 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 25.52 | 71.84 | 9.40 | 337.03 | 0.3794 | 782.0 | 612.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
