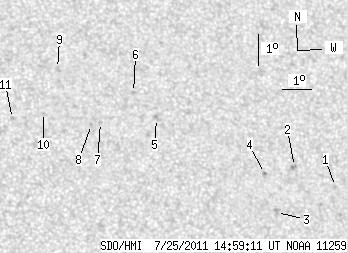

SDO HMI 2011-07-25 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.78 | 0.00 | 10.84 | 24.46 | 77.59 | 16.80 | 321.96 | 0.4301 | -16.8 | -161.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-25 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.66 | 22.99 | 82.77 | 21.99 | 312.07 | 0.4661 | -711.0 | -587.5 | |
| 0.00 | 2.27 | 0.00 | 1.26 | 23.68 | 81.42 | 20.64 | 314.89 | 0.4576 | -721.0 | -710.4 | |
| 0.00 | 4.26 | 0.00 | 2.34 | 22.23 | 80.56 | 19.78 | 313.49 | 0.4336 | -678.0 | -499.9 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 23.48 | 80.33 | 19.55 | 316.01 | 0.4437 | -849.0 | -711.6 | |
| 0.00 | 2.45 | 0.00 | 1.34 | 25.35 | 76.81 | 16.03 | 324.30 | 0.4293 | -188.0 | -311.7 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 26.22 | 76.12 | 15.34 | 326.68 | 0.4338 | -646.0 | -571.2 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 25.27 | 74.85 | 14.06 | 327.51 | 0.4108 | 733.0 | 549.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 25.21 | 74.53 | 13.74 | 328.00 | 0.4073 | 832.0 | 657.0 | |
| 0.00 | 2.45 | 0.00 | 1.34 | 27.06 | 73.56 | 12.77 | 332.22 | 0.4242 | 521.0 | 445.1 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 25.63 | 72.91 | 12.13 | 331.60 | 0.3999 | 756.0 | 660.9 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 25.45 | 71.83 | 11.04 | 333.51 | 0.3895 | 766.0 | 560.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
