SDO HMI 2011-07-25 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.33 | 0.00 | 8.44 | 23.89 | 78.43 | 18.20 | 319.07 | 0.4376 | -259.4 | -294.9 | |
|
previous
or next observation for the same group /

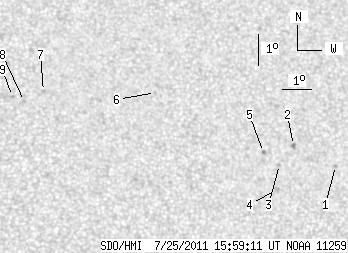

back to the solar disc SDO HMI 2011-07-25 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.76 | 22.97 | 82.82 | 22.59 | 311.33 | 0.4729 | -741.0 | -593.5 | |
| 0.00 | 2.45 | 0.00 | 1.37 | 23.66 | 81.44 | 21.21 | 314.15 | 0.4637 | -977.0 | -777.2 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 23.07 | 80.84 | 20.61 | 313.89 | 0.4513 | -708.0 | -535.6 | |
| 0.00 | 3.17 | 0.00 | 1.75 | 22.28 | 80.61 | 20.38 | 312.78 | 0.4409 | -716.0 | -573.1 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 23.47 | 80.34 | 20.11 | 315.23 | 0.4497 | -821.0 | -707.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 25.50 | 76.84 | 16.61 | 323.59 | 0.4365 | -714.0 | -563.6 | |
| 0.00 | 2.18 | 0.00 | 1.18 | 25.62 | 72.94 | 12.71 | 330.47 | 0.4043 | 723.0 | 556.0 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 25.31 | 72.25 | 12.03 | 331.37 | 0.3947 | 873.0 | 733.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 25.48 | 71.86 | 11.63 | 332.37 | 0.3941 | 746.0 | 589.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
