SDO HMI 2011-07-25 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.16 | 0.00 | 6.10 | 24.62 | 75.90 | 16.23 | 323.47 | 0.4265 | 69.9 | 55.2 | |
|
previous
or next observation for the same group /

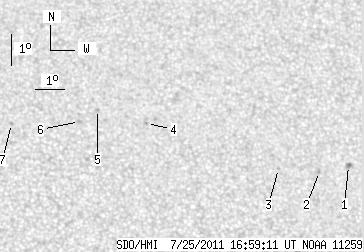

back to the solar disc SDO HMI 2011-07-25 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.27 | 0.00 | 1.27 | 23.64 | 81.45 | 21.78 | 313.42 | 0.4698 | -947.0 | -742.4 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 23.48 | 80.39 | 20.72 | 314.47 | 0.4565 | -879.0 | -626.7 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 23.62 | 78.96 | 19.29 | 316.60 | 0.4423 | -808.0 | -655.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 25.19 | 74.56 | 14.89 | 325.94 | 0.4169 | 820.0 | 657.2 | |
| 0.00 | 1.72 | 0.00 | 0.93 | 25.68 | 72.92 | 13.24 | 329.56 | 0.4092 | 735.0 | 590.5 | |
| 0.00 | 2.45 | 0.00 | 1.32 | 25.30 | 72.25 | 12.58 | 330.29 | 0.3989 | 854.0 | 604.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 25.28 | 69.91 | 10.24 | 334.95 | 0.3812 | 714.0 | 542.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
