SDO HMI 2011-07-25 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.13 | 0.00 | 8.93 | 24.06 | 77.53 | 18.97 | 318.26 | 0.4465 | 61.9 | -88.5 | |
|
previous
or next observation for the same group /

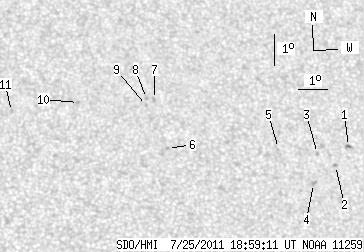

back to the solar disc SDO HMI 2011-07-25 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.81 | 0.00 | 1.59 | 23.64 | 81.53 | 22.97 | 312.03 | 0.4831 | -837.0 | -680.2 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 23.05 | 80.96 | 22.39 | 311.68 | 0.4712 | -768.0 | -608.3 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 23.45 | 80.38 | 21.82 | 313.04 | 0.4684 | -883.0 | -588.4 | |
| 0.00 | 1.99 | 0.00 | 1.11 | 22.50 | 80.08 | 21.51 | 311.76 | 0.4560 | -901.0 | -747.8 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 23.66 | 79.03 | 20.46 | 315.07 | 0.4553 | -718.0 | -688.3 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 23.76 | 75.15 | 16.58 | 320.87 | 0.4156 | 754.0 | 567.2 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 25.35 | 74.91 | 16.35 | 323.77 | 0.4321 | 768.0 | 628.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 25.39 | 74.63 | 16.07 | 324.27 | 0.4300 | 761.0 | 507.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 25.17 | 74.60 | 16.04 | 323.98 | 0.4270 | 771.0 | 612.1 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 25.32 | 72.25 | 13.69 | 328.23 | 0.4080 | 838.0 | 757.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 25.07 | 69.92 | 11.35 | 332.37 | 0.3862 | 896.0 | 671.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
