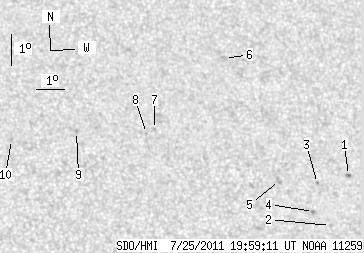

SDO HMI 2011-07-25 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.77 | 0.00 | 8.22 | 24.39 | 77.88 | 19.87 | 317.32 | 0.4589 | -82.5 | -254.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-25 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.87 | 23.63 | 81.56 | 23.55 | 311.36 | 0.4896 | -809.0 | -665.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 22.06 | 80.63 | 22.62 | 309.67 | 0.4649 | -631.0 | -446.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 23.41 | 80.40 | 22.39 | 312.29 | 0.4744 | -802.0 | -668.0 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 22.52 | 80.10 | 22.09 | 311.10 | 0.4629 | -870.0 | -733.2 | |
| 0.00 | 2.63 | 0.00 | 1.46 | 23.55 | 79.06 | 21.05 | 314.14 | 0.4607 | -674.0 | -701.5 | |
| 0.00 | 2.08 | 0.00 | 1.18 | 27.56 | 77.80 | 19.79 | 322.02 | 0.4896 | -505.0 | -510.8 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 25.32 | 74.92 | 16.91 | 322.82 | 0.4368 | 804.0 | 526.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 25.19 | 74.62 | 16.61 | 323.10 | 0.4325 | 841.0 | 641.4 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 25.32 | 72.19 | 14.18 | 327.35 | 0.4121 | 906.0 | 763.9 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 25.10 | 69.92 | 11.91 | 331.30 | 0.3907 | 915.0 | 731.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
