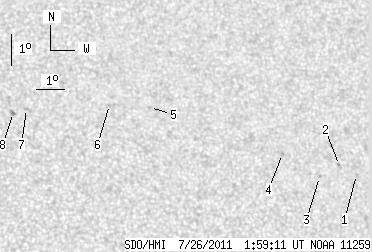

SDO HMI 2011-07-26 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.53 | 0.00 | 5.90 | 24.26 | 75.92 | 21.23 | 315.83 | 0.4732 | 71.4 | 82.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-26 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.63 | 22.87 | 81.76 | 27.06 | 306.59 | 0.5241 | -369.0 | -360.8 | |
| 0.00 | 1.63 | 0.00 | 0.94 | 23.18 | 81.19 | 26.50 | 307.61 | 0.5198 | -767.0 | -565.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 22.85 | 80.39 | 25.69 | 307.82 | 0.5077 | -626.0 | -504.2 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 23.64 | 79.19 | 24.49 | 310.32 | 0.5002 | -682.0 | -606.3 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 25.28 | 74.68 | 19.99 | 318.29 | 0.4664 | 717.0 | 557.4 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 25.41 | 73.28 | 18.58 | 320.43 | 0.4537 | 753.0 | 595.1 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 25.36 | 70.34 | 15.65 | 324.86 | 0.4251 | 641.0 | 514.7 | |
| 0.00 | 2.27 | 0.00 | 1.24 | 25.24 | 69.87 | 15.18 | 325.46 | 0.4194 | 904.0 | 792.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
