SDO HMI 2011-07-26 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.62 | 0.00 | 4.58 | 23.07 | 82.02 | 30.61 | 304.07 | 0.5677 | -678.2 | -533.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-26 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

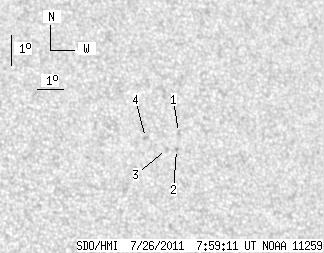

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.15 | 23.35 | 82.57 | 31.16 | 304.12 | 0.5760 | -549.0 | -404.2 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 22.82 | 82.36 | 30.95 | 303.43 | 0.5701 | -754.0 | -602.9 | |
| 0.00 | 2.18 | 0.00 | 1.31 | 22.83 | 81.97 | 30.57 | 303.73 | 0.5657 | -684.0 | -565.2 | |
| 0.00 | 2.00 | 0.00 | 1.19 | 23.25 | 81.27 | 29.86 | 304.91 | 0.5600 | -726.0 | -568.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
